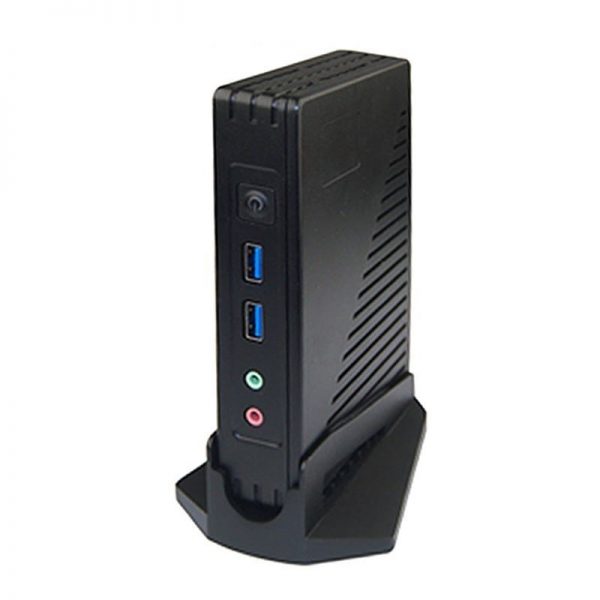

Polywell 3855Z/6100Z

Intel® Celeron® 3855u, DP, HDMI, 2 LAN, COM, MiniPCIe, SIM

Featured Highlights

• Intel® Celeron® 3855u Processor
• Intel® Skylake-u/Kaby Lake-u Platform (SOC)
• Intel® HD 520 Graphics, 4K Resolution, DP+HDMI
• 2 DDR4 SO-DIMM for up to 32GB Memory
• M.2 SSD/NVMe
• MiniPCIe
• Realtek® Gigabit LAN + Intel® Gigabit LAN
• 2 USB 3.0, 2 USB 2.0
• 5.1 ALC662 Audio Sound
• DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
• OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
• Application: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, IoT/Edge System, etc.

CPU options
• Intel® Celeron® 3855u 1.60GHz 2Core 2Threads 2M 10/15W
• Option: 6th Generation Skylake Intel® Core™ i3-6100u, i3-6006u, i3-6157u, i5-6200u, i5-6260u, i5-6267u, i5-6287u, i7-6500u, i7-6560u, i7-6567u, i7-6600u,Pentium® 4405u, Celeron® 3855u
• Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u
Chipset
• Intel® Skylake Platform (SOC)
• Option: Intel® Kaby Lake-u Platform (SOC)
Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Graphics
• Intel® HD 520 Graphics, 4K Resolution
• Support 2 Graphics ports
• 1 x DP, 4K 60Hz Graphics port
• 1 x HDMI, supporting a maximum resolution of 3840x2160 30Hz Support for HDMI 1.4 version and HDCP 2.2
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 1 x Intel® Gigabit (10/100/1000 Mb/s) LAN
• 1 x SIM socket (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion slots
• 1 x MiniPCIe full size slot (for mSATA)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Audio
• Realtek® ALC662 6-channel (5.1)
Back panel I/O
• 2 x USB 2.0 ports
• 1 x RJ45 Serial COM port
• 1 x DP
• 1 x HDMI port
• 2 x LAN ports
• 1 x DC-In 2.5mm Power Connector
Internal I/O
Other I/O
Front panel I/O
• 2 x USB 3.0 ports
Function
System BIOS
• AMI® UEFI / Legacy BIOS
Chassis
• Nano-Z series Plastic Enclosure
• Dimensions: 6"(W) x 3.7"(D) x 1.18"(H) weight: 7lbs
• Color: Black
Power supply
• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Windows 7, Windows 8, Windows 10, IoT, Linux • Windows 7 is not supported by Kaby Lake and Coffee Lake processor but Skylake only
Application
• Digital Signage, Network Security, POS/Kiosk, Edge AI, OpenVino, Set Top Box, Home/Office MiniPC, etc.
Environment
• Operating Temperature: 0 to +50 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
