Polywell H110L3

6th Gen Socket-S Skylake, HD Graphics DP+HDMI, 3 LAN+5 COM, PCIe x16+PCIe x1

Featured Highlights

• Intel® Core™ i7/i5/i3/Pentium® Processor LGA1151
6th Generation Skylake Platform
Low-voltage energy efficiency Eco-smart computing
• Intel® H110/B150 Platform (SOC)
• Intel® HD 530 Graphics, 4K Resolution, DP+HDMI+eDP/H
• 2 DDR4 SO-DIMM for up to 32GB Memory
• 2 SATA-6Gb/s, M.2 SSD
• PCIe 3.0 x16+PCIe 3.0 x1
• 3 Gigabit LAN
• 4 USB 3.0, 4 USB 2.0
• 5.1 ALC662 Audio Sound
• DC12V 60W or higher wattage Power Adapter (UL/CE/FCC Certified)
Optional 90V-240V 220W or higher wattage AC Power Supply
• OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
• Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.

CPU options
• Intel® 6th Generation Skylake Processor
• LGA1151 socket series with 35W to 65W TDP
• Intel® Core™ i7-6700T (35W), i7-6700 (65W)
• Intel® Core™ i5-6400T (35W), i5-6500T (35W), i5-6600 (65W)
• Intel® Core™ i3-6100T (35W), i3-6100 (47W)
• Intel® Dual Core Pentium® G4400T (35W), G4500T (35W), G4500 (47W)
• Intel® Celeron® G3900T (35W), G3900 (51W)
Chipset
• Intel® H110 Express Chipset
• Supports 6th/7th Gen LGA1151 Processor
• Option: Intel® B150 Express Chipset
Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Graphics
• Intel® HD 530 Graphics, 4K Resolution
• Option: Intel® HD 630 Graphics, 4K Resolutions
• Support 2 Graphics ports, 1 header
• 1 x DP, 4K 60Hz Graphics port
• 1 x HDMI, supporting a maximum resolution of 3840x2160 30Hz Support for HDMI 1.4 version and HDCP 2.2
• 1 x eDP header
Network
• 3 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion slots
• 1 x PCI Express 3.0 x16 slot
• 1 x PCI Express 3.0 x1 slot
• 1 x M.2 2242 (for SATA-6Gb/s only)
Storage
• 2 x SATA 6Gb/s
• 1 x M.2 Socket(type 2242, for SATA-6Gb/s only)
Audio
• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks
Back panel I/O
• 4 x USB 3.0 ports
• 2 x USB 2.0 ports
• 1 x DP
• 1 x HDMI port
• 3 x LAN ports
• 2 x 3.5mm Audio jacks
Internal I/O
• 2 x USB 2.0 headers
• 5 x Serial COM headers (RS485, 4 RS232)
• 1 x eDP header
• 1 x PS/2 header
• 1 x Parallel port header
Other I/O
Front panel I/O
Function
• 1 x 4in/4out GPIO header
System BIOS
• AMI® UEFI / Legacy BIOS
• Watchdog supported
Chassis

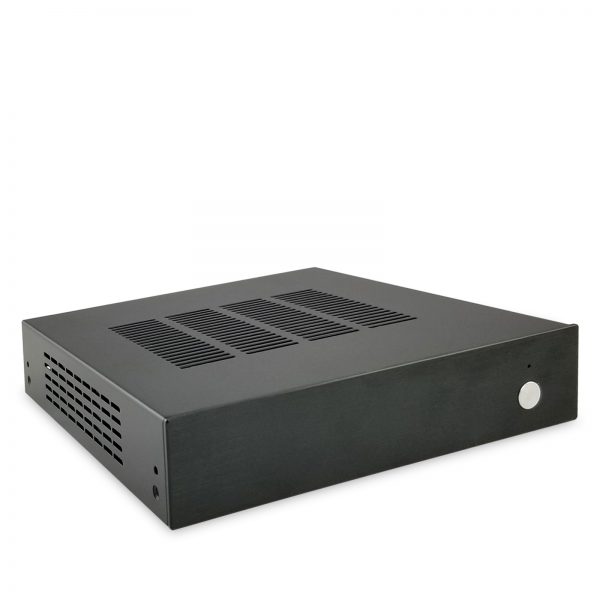

• 175C Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 1.75(H) x 8.1(W) x 8(L) inch, Weight: 3 lb. (Net) 10 lb. (gross with packaging)
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• 175C Case 1.75" H 175F Fanless 1.75" H

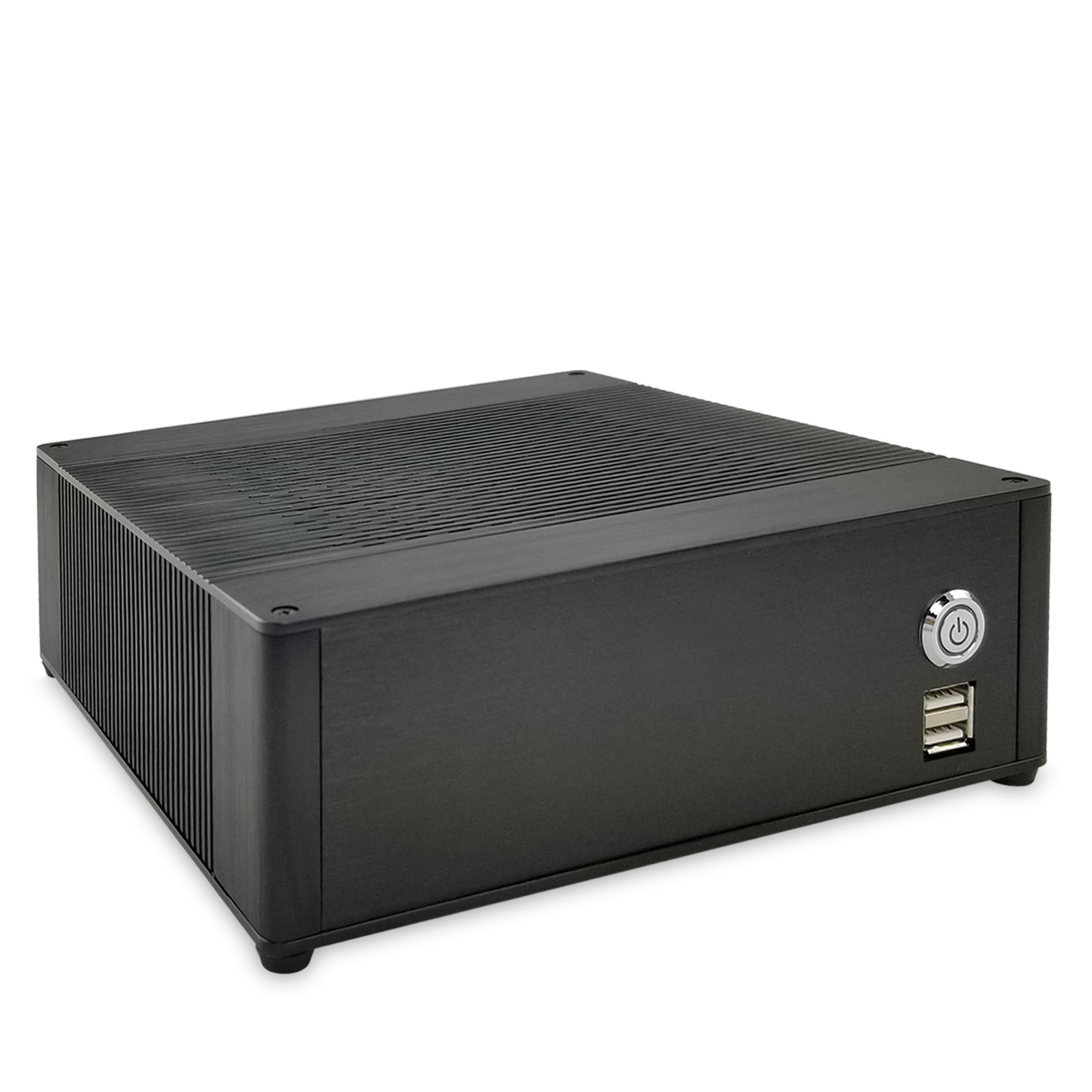

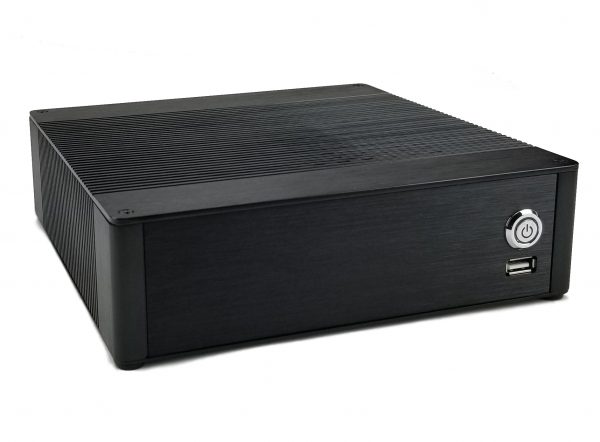

• Option: 300B Aluminum 2.1" H ,400B Aluminum 2.6"H ,450S Swap/DVD+uLP ,500B 3.5" H w/LP Slot ,500S 2U LP/RISER ,550PS Slot+1U P/S ,600B tall Slot,Hd bay ,600T Twin PC ,1750C with slot ,1750F Fanless with slot ,1U-1000U Low Cost Mini Server with PCIe x16 Slot ,1U-1000S Low Cost Mini Server with PCIe x16 Slot ,1U-1000D 5.25"CD/swap ,1U-1000T 2-in-1U Twin ,2U-2000U Short 2U 4-Slot ,5000PS uATX 2 RISER
Power supply
• Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Windows 7, Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
