Polywell H110L4C6

9th/8th/7th/6th Gen Fanless Socket-S, HDMI+DVI+VGA+LVDS, PCIe x16+PCIe x4+MiniPCIe, 4 LAN+6 COM+9 USB

Featured Highlights

• Intel® 9th/8th/7th/6th Gen. Core™ i9/i7/i5/i3 Embedded T-Series Socket-S Processor
• Intel® H110/C236 Chipset
• Intel® Graphics, HDMI+DVI+VGA+LVDS
• 2 DDR4 SO-DIMM for up to 32GB Memory
• 2 SATA-6Gb/s, mSATA, M.2 SSD/NVMe
• PCIe x16, PCIe x1/x4, MiniPCIe
• 4 Gigabit LAN, M.2 4G/5G+SIM
• 4 USB 3.0, 5 USB 2.0, 6-10 COM
• HD Audio Sound
• Power Supply: DC10V-30V Wide Power Range (UL/CE/FCC Certified)
• OS Support: Windows 10/7, WES7, Linux (64bit/32bit)
• Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge Computing, Industrial Rugged PC etc.

CPU options
• Intel® 9th/8th/7th/6th Generation LGA1151 Core™ i9/i7/i5/i3 Embedded T-Series 35W
Chipset
• Intel® H110/C236 Chipset
Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Graphics
• Intel® Graphics (based on CPU)
• Support 2 Displays with H110 chipset and 3 Displays with C236 chipset
• 1 x HDMI, supporting a maximum resolution of 3840x2160 30Hz Support for HDMI 1.4 version and HDCP 2.2
• 1 x DVI-D port
• 1 x VGA port
• 1 x LVDS/eDP header
Network
• 3 x Intel® I211AT Gigabit (10/100/1000 Mb/s) LAN
• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• Gigabit Ethernet port surge protection (common mode 4KV, differential mode 8KV)
• M.2 3052/3042 (for 5G/4G-LTE Wireless Module)
• 1 x SIM socket for 5G/4G-LTE option
• Wake on LAN, PXE boot (Diskless) supported
Expansion slots
• 1 x PCI Express x16 slot
• 1 x PCI Express x1 (x4 in C236 chipset) slot
• 1 x MiniPCIe full size slot
• 1 x M.2 3052/3042 (for 5G/4G-LTE Wireless Module)
• 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe x4 NVMe with C236 chipset)
Storage
• 2 x SATA 6Gb/s (C236 chipset supports RAID0/1)
• 1 x mSATA
• 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe x4 NVMe with C236 chipset)
Audio
• HD Audio
• 3 x 3.5mm Analog Stereo Audio jacks

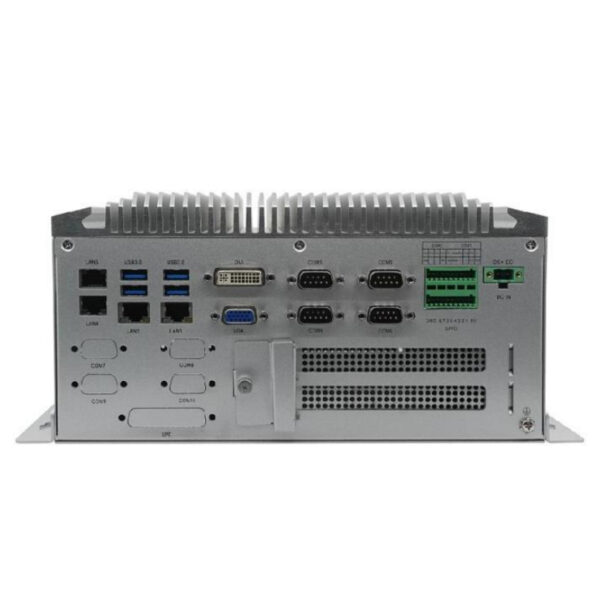

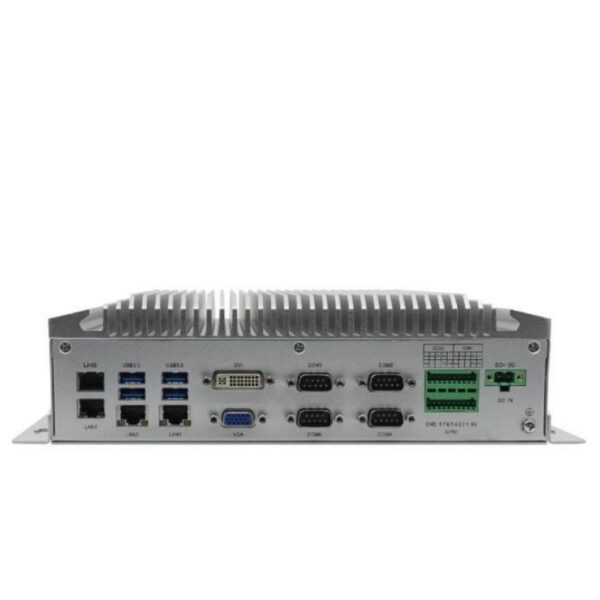

Back panel I/O
• 4 x USB 3.0 ports
• 4 x LAN ports
• 4 x RS232 COM ports
• 2 x RS485/422/232 COM ports
• Optional Additional 4 x RS485/232 COM ports
• 1 x DVI-D port
• 1 x VGA port
• 1 x DC-In Phoenix Terminal
Internal I/O
• 1 x USB 2.0 Internal port
• 1 x LVDS/eDP header
Other I/O

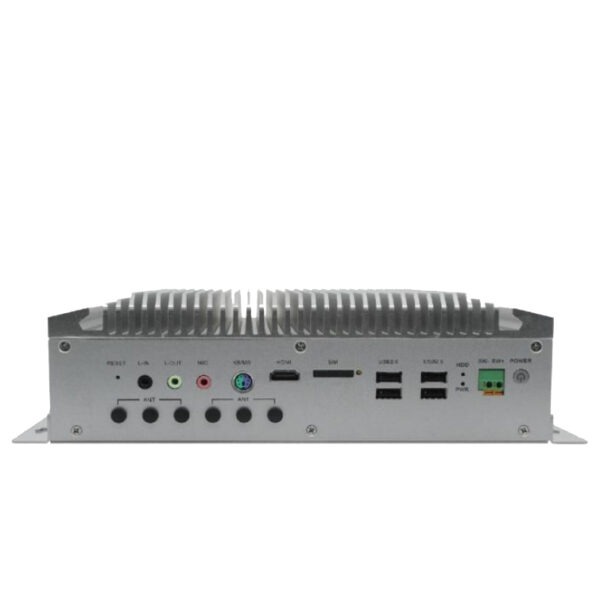

Front panel I/O
• 4 x USB 2.0 ports (Front)
• 3 x Audio jacks (Front)
• 1 x HDMI port (Front)
• 1 x PS2 port (Front)
• 1 x SIM slot (Front)
Function
• TPM support
• 1 x 4pin SM Bus Interface
System BIOS
• AMI® UEFI BIOS
• Watchdog supported
Chassis
• Fanless Industial Chassis
• Dimensions: 10.12"(W) x 7.52"(D) x 3.11"-7.44"(H), Weight: 6.6 lb. (Net) 8 lb. (gross with packaging)
• Supports wall mount brackets
Power supply
• Power: DC10V-30V Phoenix Terminal power adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Windows 10, Windows 7, WES7, Linux (64bit/32bit)
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge Computing, Industrial Rugged PC etc.
Environment
• Operating Temperature: -10 to +55 C
• Non operating temperature: -40 to +80 C
• Vibration - Operating: (3.0G) 5 to 500Hz
• Vibration - Non operating: (3.0G) 5 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 20% to 90% (non-condensing)
• Non-operating Relative Humidity: 20% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
