X36C

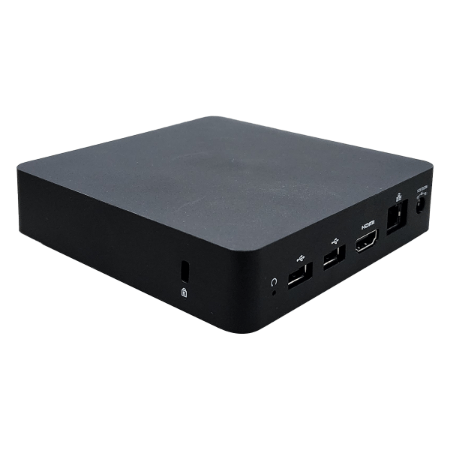

Polywell X36C

QuadCore ARM® Cortex®-A55, HDMI 2.0 4K IPTV PC, WiFi5+Bluetooth 4.2, RK3566 ARM A55 Mali G52

Featured Highlights

• ARM® Cortex®-A55 Processor
• RK3566 Chipset
• Mali™-G52 GPU, HDMI 2.0
• Onboard 2GB DDR4 Memory up to 4GB
• 16GB eMMC Storage up to 32GB
• Gigabit LAN, WiFi5+BT 4.2
• 3 USB 2.0, 1 USB 3.0
• HD Audio Sound
• Power Supply: DC12V Power Adapter (UL/CE/FCC Certified)
• OS Support: Android 11
• Applications: Set Top Box, Digital Signage, IPTV, Entertainment PC, etc.

$0.00

CPU options
• ARM® Cortex®-A55 4Core up to 1.80GHz
Chipset
• Rockchip RK3566 (SOC)
Memory
• DDR4 Onboard (Option: 2GB or 4GB)
Graphics
• Mali™-G52 Graphics
• 1 x HDMI® 2.0 port, supports a max. resolution of 4K at 60Hz
Network
• 1 x 1 Gigabit (10/100/1000 Mb/s) LAN
• 802.11ac/n/g WiFi-5+Bluetooth 4.2 Module
• Wake on LAN
Expansion slots
Storage
• eMMC Flash Internal Storage (Option: 16GB or 32GB)
Audio
• HD Audio
• 1 x 3.5mm Analog Stereo Audio jacks
Back panel I/O
• 1 x HDMI® 2.0 port
• 1 x LAN port
• 2 x USB 2.0 Port
• 1 x DC-In 2.5mm Power Connector
Internal I/O
Other I/O
Front panel I/O
• 1 x USB 2.0 ports (Front)
• 1 x USB 3.0 port (Front)
• 1 x 3.5mm audio (Front)
Function
System BIOS
• Watchdog supported
Chassis
• Nano-MX5 Chassis
• Dimensions: 5.00"(W) x 5.00"(D) x 1.20"(H), Weight: 0.7 lb (Net)
• Color: Black, custom colors available with special order
• VESA/wall Mount Ready
Power supply
• Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W
OS support
• Android 11
Application
• Set Top Box, Digital Signage, IPTV, Traffic Controller, etc.
Environment
• Operating Temperature: 10 to +50 C
• Non operating temperature: -40 to +75 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 0% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
