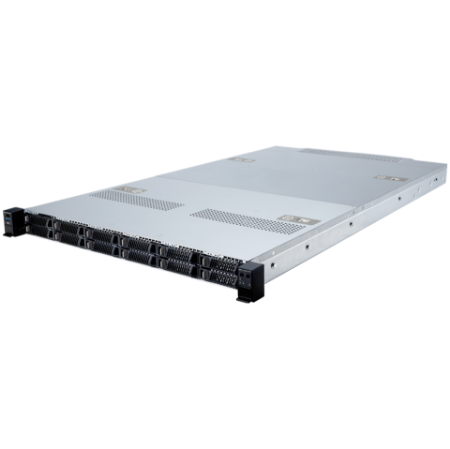

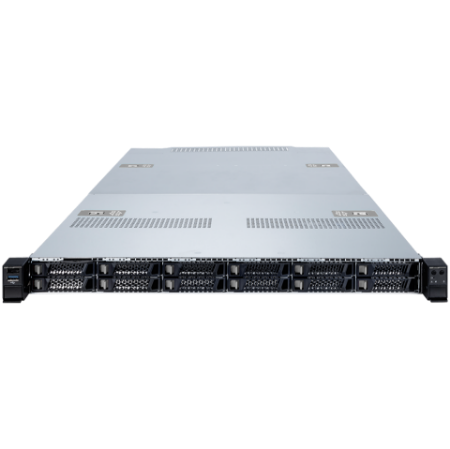

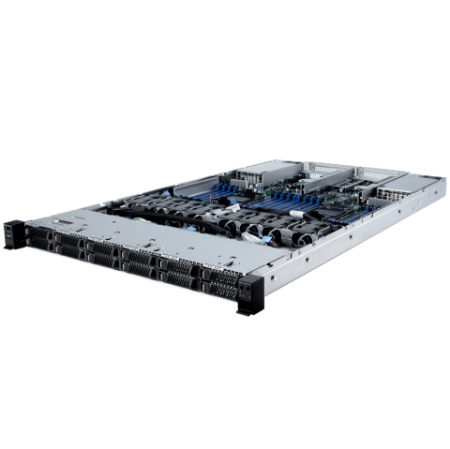

Polywell 1U12N-X6
1U Dual-Socket Intel® Xeon® 6500/6700 Enterprise Server Platform with All-NVMe Flash Storage
Featured Highlights
• Dual Intel® Xeon® 6500/6700-series processors
• 2 x PCIe 5.0 x16 FHHL single wide slots, 1 x PCIe 5.0 x16 OCP3 NIC mezzanine slot
• 32 x DDR5 DIMM slots, 8 x channels per CPU (2DPC)
• 12 x Front hot-swap U.2 NVMe drive bays ,2 x Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays
• 1 x 1000Base-T Dedicated Server Management port
• 1 x USB 3.0, 2 x USB 2.0, 1 x COM
• 1+1 Redundant 2000W CRPS 80 PLUS Titanium
• OS Support: Windows Server, Linux, FreeBSD, VMware
• Applications: Cloud Computing Service, Content Delivery Network, Network Function Virtualization, etc.
CPU options
• Dual Intel® Xeon® 6700E-series, 6500P-series and 6700P-series processors, TDP up to 350W
Chipset
None (Intel Xeon 6 PCH‑less architecture; all I/O provided by CPUs)
Memory
• 32 x DDR5 DIMM slots, 8 channels per CPU (2DPC),RDIMM/RDIMM-3DS/MRDIMM
• Max. Frequency:RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC),MRDIMM: 8000MT/s (only support 1DPC)
• Max. Capacity per DIMM: 256GB (RDIMM), 64GB (MRDIMM)
• Max. Frequency:RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC),MRDIMM: 8000MT/s (only support 1DPC)
• Max. Capacity per DIMM: 256GB (RDIMM), 64GB (MRDIMM)
Graphics
• No integrated GPU (Intel Xeon 6 CPUs do not include graphics)
• ASPEED AST2600 BMC provides management‑only video via rear Mini DisplayPort
• ASPEED AST2600 BMC provides management‑only video via rear Mini DisplayPort
Network
• 1 x PCIe 5.0 x16 OCP3 NIC mezzanine slot (CPU0, NCSI supported)
Expansion
• 2 x PCIe 5.0 x16 FHHL single wide slots (1 from CPU0, 1 from CPU1)
Storage
• 12 x Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays (6 from CPU0, 6 from CPU1)
• 2 x Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays (CPU1)
• 2 x 2280/22110 PCIe 5.0 x2 NVMe M.2 ports (CPU0)
• NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required)
• 2 x Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays (CPU1)
• 2 x 2280/22110 PCIe 5.0 x2 NVMe M.2 ports (CPU0)
• NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required)
Audio

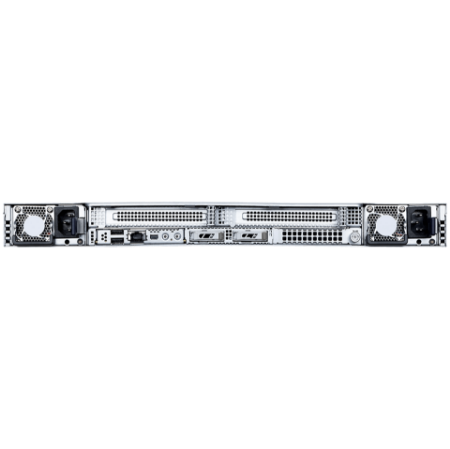

Back panel I/O
• 2 x Hot-swap E1.S 9.5mm drive bays
• 1 x 1000Base-T Dedicated Server Management port
• 1 x COM USB Type A port
• 1 x USB 2.0 Type-A port
• 1 x Mini Display port
• 1 x Power LED (Green) button
• 1 x UID LED (Blue) button
• 1 x Status LEDs: Green/Red
• 1 x 1000Base-T Dedicated Server Management port
• 1 x COM USB Type A port
• 1 x USB 2.0 Type-A port
• 1 x Mini Display port
• 1 x Power LED (Green) button
• 1 x UID LED (Blue) button
• 1 x Status LEDs: Green/Red
Internal I/O
Other I/O

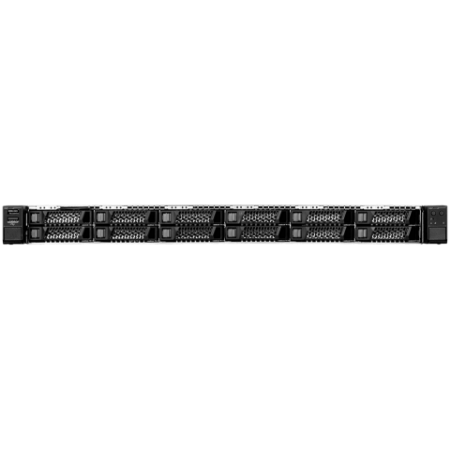

• 12 x Hot-swap 2.5" U.2 drive bays
• 1 x USB 3.0 Type-A port
• 1 x USB 2.0 Type-A port
• 1 x System Power LED button
• 1 x UID LED button
• 1 x Reset button
• 4 x Status LEDs: Fault/LAN/M.2
• 1 x USB 3.0 Type-A port
• 1 x USB 2.0 Type-A port
• 1 x System Power LED button
• 1 x UID LED button
• 1 x Reset button
• 4 x Status LEDs: Fault/LAN/M.2
Function
• 1 x 1000Base-T Dedicated Server Management port
• ASPEED AST2600 with AMI MegaRAC based firmware
• supporting IPMI 2.0 and DMTF Redfish API
• Dual BIOS and dual BMC
• eMMC for local BMC storage media
• ASPEED AST2600 with AMI MegaRAC based firmware
• supporting IPMI 2.0 and DMTF Redfish API
• Dual BIOS and dual BMC
• eMMC for local BMC storage media
System BIOS
• AMI UEFI BIOS with dual‑BIOS redundancy; ASPEED AST2600 BMC with AMI MegaRAC
Chassis
• 1U 438.5mm (17.2") W x 43mm (1.7") H x 770mm (30.3") D
Power supply
• 1+1 Redundant 2000W CRPS 80 PLUS Titanium
OS support
• Windows Server, Linux, FreeBSD, VMware
Application
• Cloud Computing Service,Content Delivery Network,Network Function Virtualization
Environment
• System Operating Temperature: 0°C ~ 35°C
• Non-operating Temperature: -20°C ~ 70°C
• Non-operating Relative Humidity: 5% to 85% (non-condensing)
• Non-operating Temperature: -20°C ~ 70°C
• Non-operating Relative Humidity: 5% to 85% (non-condensing)
