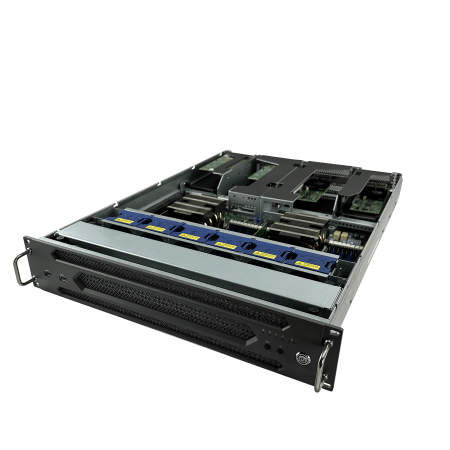

Polywell 2U5E-X6
2U Short 6th Gen. Birch Stream, 5 x16 PCIe 5.0 + 32 DDR5, OCP 3.0 + 2x10GbE, 2x2000W CRPS
Featured Highlights
• Dual 6th Gen Xeon® Birch Stream-SP，up to 144 cores each，max 350W
• 32 x DDR5 DIMM 4800MHz ECC Memory
• 2 x M.2 NVMe 4.0
• 2 x 10GbE RJ45 Ethernet, IPMI 2.0
• Up to 3× FHFLDW or 6× FHFLSW or 8× HHHLSW GPU
• 2 x 2000W CRPS Platinum
• For AI Server,Virtual Server, Compute Server, Database Server, Cloud
CPU options
• Dual Intel® 6th Gen Xeon® Birch Stream-SP，up to 144 cores each，max 350W
• Support 6700P, 6500P, 6700E series CPU
• Support 6700P, 6500P, 6700E series CPU
Chipset
Memory
• 32 × DDR5 slots ((RDIMM/3DS RDIMM)，up to 6400MT/s, 16 channels
• 6700P, 6500P series CPU support MRDIMMs, up to 8000MT/s
• 6700P, 6500P series CPU support MRDIMMs, up to 8000MT/s
Graphics
Optional VGA(F)
Network
• 2 x 10GbE BaseT RJ45 LAN Ports from Intel® X710-AT2
• 1 x GbE dedicated for IPMI
• 1 x GbE dedicated for IPMI
Expansion
• Front: 2 × PCIe 5.0 standard slots option；1 × OCP3.0 option, PCIe5.0 ×8 or ×16 , with NCSI
• Rear: Up to 10 × PCIe 5.0 standard slots option；
• 1 × OCP3.0 option, PCIe5.0 ×8 or ×16 option, with NCSI
• Up to 3 × FHFLDW or 6 × FHFLSW or 8 × HHHLSW GPU
• Rear: Up to 10 × PCIe 5.0 standard slots option；
• 1 × OCP3.0 option, PCIe5.0 ×8 or ×16 option, with NCSI
• Up to 3 × FHFLDW or 6 × FHFLSW or 8 × HHHLSW GPU
Storage
• 12Gb/s SAS HBA or RAID card option
• 1 × M.2 SATA switch card with 2× SATA3.0 option, support RAID 1
• Front: Up to 12 × 3.5” or 25 × 2.5”HDDs
• Up to 24 × U.2 NVMe SSD or 32 × E3.S NVMe SSD
• Rear : Up to 4 × 2.5" HDD
• Internal : 2 × M.2 (PCIe 5.0 x4，2280&22110)
• 1 × M.2 SATA switch card with 2× SATA3.0 option, support RAID 1
• Front: Up to 12 × 3.5” or 25 × 2.5”HDDs
• Up to 24 × U.2 NVMe SSD or 32 × E3.S NVMe SSD
• Rear : Up to 4 × 2.5" HDD
• Internal : 2 × M.2 (PCIe 5.0 x4，2280&22110)
Audio

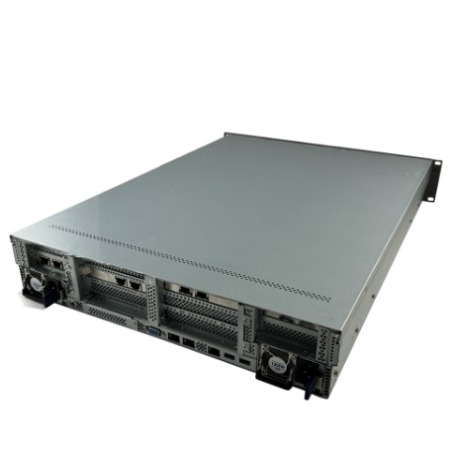

Back panel I/O
• 1 × Optional VGA(F)
• 2 × USB3.0
• 1 × VGA
• 2 × USB3.0
• 2 × Ethernet ports
• 1 × IPMI RJ45
• 1 × COM
• 1 × OCP NIC 3.0 slot option
• 2 × USB3.0
• 1 × VGA
• 2 × USB3.0
• 2 × Ethernet ports
• 1 × IPMI RJ45
• 1 × COM
• 1 × OCP NIC 3.0 slot option
Internal I/O
Other I/O
Function
System BIOS
• AMI / 64MB
Chassis
• 2U Rackmount with Front HDD LED
• 6 x 2U Cooling Fans
• Dimension: 3.43" H x 17.26" W x 25" D
• 6 x 2U Cooling Fans
• Dimension: 3.43" H x 17.26" W x 25" D
Power supply
• 2 x 2000W CRPS Platinum Level PSU
OS support
• Windows Server, Linux, FreeBSD, VMware ESXi
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment
• Operating Temperature: +10 to +35 C
• Non-operating Temperature: -40 to +70 C
• Operating Relative Humidity: 10% to 80% (non-condensing)
• Non-operating Relative Humidity: 10% to 93% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
• Non-operating Temperature: -40 to +70 C
• Operating Relative Humidity: 10% to 80% (non-condensing)
• Non-operating Relative Humidity: 10% to 93% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
