Polywell 2U8S32-C741
2U General Server GPU Cluster for AI, Deep Learning, HPC.
Featured Highlights
• Socket 4th & 5th Gen Xeon® CPU
• Up to 16×3.5"+2×2.5" HDD or 29×2.5" HDD，Up to 24×NVMe
• Up to 10×PCIe expansion slots
• 32 DDR5 ECC Memory, up to 8TB
• 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 option
• BMC KVM Remote Management
• 2 1600W-3000W Platinum/Titanium Redundant Power Supply
• GPU Cluster for AI, Deep Learning, HPC.
CPU options
• 1 or 2×Intel® 4th & 5th Gen Xeon® Sapphire Rapids/ Emerald Rapids , up to 350W
Chipset
• Intel C741
Memory
• 32× DDR5 slots (RDIMM)，16channel, up to 5600MHz, support RDIMM/3DS RDIMM
• Up to 8TB
• Up to 8TB
Graphics
• 1×VGA
Network
• 1×1GbE IPMI RJ45 (AST2600)
• Support 1× PCIe x8/ x16 OCP 3.0 SFF expansion card，multi-host、iSCSI (NCSI) supported
• 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 option
• Support 1× PCIe x8/ x16 OCP 3.0 SFF expansion card，multi-host、iSCSI (NCSI) supported
• 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 option
Expansion
• Up to 10× standard expansion slots
• 3×FHFLDW or 6×FHFLSW card slots
• 3×FHFLDW or 6×FHFLSW card slots
Storage
• Integrated 6Gb/s SATA controller；
• 12Gb/s SAS HBA or 12Gb/s SAS RAID option
• Up to 16×3.5"+2×2.5" HDD or 29×2.5" HDD，Up to 24×NVMe

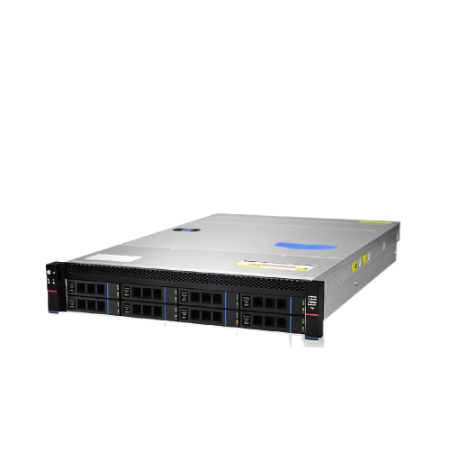

• Front: Up to 12×3.5" or 25×2.5" HDD
• Rear : Up to 4×3.5"+2×2.5" HDD or 2×3.5"+4×2.5" HDD
• Internal : 2×M.2(PCIe 4.0 x4，2280&22110)
• 12Gb/s SAS HBA or 12Gb/s SAS RAID option
• Up to 16×3.5"+2×2.5" HDD or 29×2.5" HDD，Up to 24×NVMe
• Front: Up to 12×3.5" or 25×2.5" HDD
• Rear : Up to 4×3.5"+2×2.5" HDD or 2×3.5"+4×2.5" HDD
• Internal : 2×M.2(PCIe 4.0 x4，2280&22110)
Audio

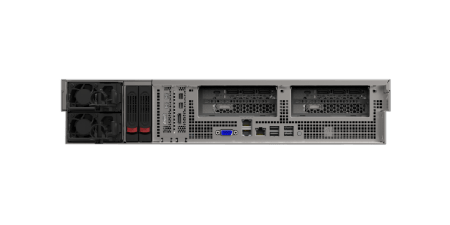

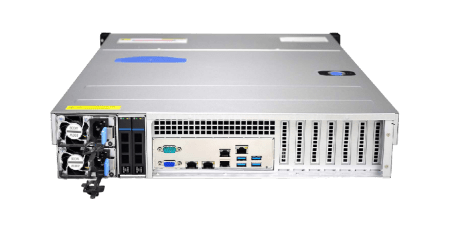

Back panel I/O
• 1×VGA
• 1×COM
• 2×USB3.0
• 1×IPMI RJ45
• 1×Standard OCP NIC 3.0 slot
• 1×COM
• 2×USB3.0
• 1×IPMI RJ45
• 1×Standard OCP NIC 3.0 slot
Internal I/O
• 2 × USB 3.0 header
• 2 × USB 2.0 header
• 1× USB 2.0 Type A
• 10 × SATA 3.0（2 × SFF-8643+2 × 7pin SATA）
• 3 × MCIO（PCIe 5.0x8），support 6 × NVMe
• 2 × M.2 , PCIe 4.0 x4 , 2280 & 22110
• 1 × SPI TPM 2.0
• 2 × USB 2.0 header
• 1× USB 2.0 Type A
• 10 × SATA 3.0（2 × SFF-8643+2 × 7pin SATA）
• 3 × MCIO（PCIe 5.0x8），support 6 × NVMe
• 2 × M.2 , PCIe 4.0 x4 , 2280 & 22110
• 1 × SPI TPM 2.0
Other I/O
Function
System BIOS
Chassis
• 2U standard rack server
• W 436mm × H 87mm × D 763mm（783mm with ear bezels）
• W 436mm × H 87mm × D 763mm（783mm with ear bezels）
Power supply
• 2×Power Modules, support 1+1 redundancy（Active-Active & Active-standby module)，support hot-swap
• 800W/1300W/1600W/2000W Platinum or Titanium power module option
• 800W/1300W/1600W/2000W Platinum or Titanium power module option
OS support
• Windows Server, Linux
Application
• GPU for AI, Deep Learning, HPC.
Environment
• Operating Temperature: +10 to +35 C
• Non-operating Temperature: -40 to +70 C
• Operating Relative Humidity: 10% to 80% (non-condensing)
• Non-operating Relative Humidity: 10% to 93% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
• Non-operating Temperature: -40 to +70 C
• Operating Relative Humidity: 10% to 80% (non-condensing)
• Non-operating Relative Humidity: 10% to 93% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance
