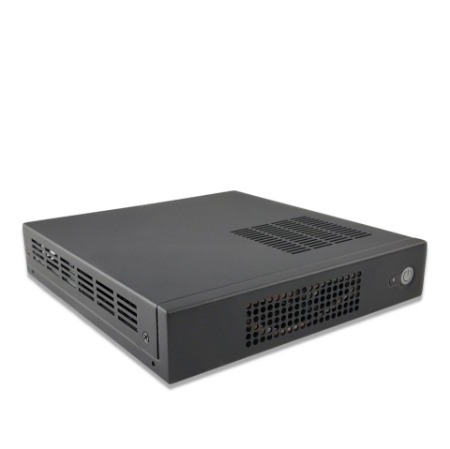

Polywell H810A1
Core Ultra Arrow Lake-S, 2 x HDMI+DP, M.2 NVMe + 2 x SATA, 9 x USB Ports
Featured Highlights
• Intel® Core™ Ultra i9/i7/i5 Socket-S Processor LGA1851
• Intel® H810 Chipset
• Intel® ARC Graphics, 2 x HDMI+DP Triple Display
• 2 x DDR5 SO-DIMM 6400MHz
• M.2 NVMe SSD + 2 SATA
• Gigabit LAN + WiFi-6/7 + BT
• Up to 9 x USB 3.2/2.0 Ports, Optional COM Port
• 7.1 ALC897 Audio Codec
• DC12V/19V Low Voltage Power Adapter (UL/CE/FCC Certified)
• OS Support: Windows 11 Pro, IoT, Linux
• Applications: Digital Signage, Entertainment PC, Edge AI, Audio/Video PC, AI-IoT, General SoHo Computing, etc.
CPU options
• Intel® Core™ Ultra Processors (Series 2) (LGA1851) Arrow Lake-S Family
• Intel® Core™ Ultra 9-285, 7-265, 5-245/235/225 (65W)
• Intel® Core™ Ultra 9-285T, 7-265T, 5-245T/235T/225T (35W)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
• Integrated NPU for dedicated AI acceleration
• Intel® Core™ Ultra 9-285, 7-265, 5-245/235/225 (65W)
• Intel® Core™ Ultra 9-285T, 7-265T, 5-245T/235T/225T (35W)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
• Integrated NPU for dedicated AI acceleration
Chipset
• Intel® H810 Chipset
Memory
• 2 x DDR5 SO-DIMM
• Up to 5600Hz unbuffered non-ECC Dual Channel I/O
• Supports up to 256GB (typical 64GB with 2 x 32GB Modules)
• Up to 5600Hz unbuffered non-ECC Dual Channel I/O
• Supports up to 256GB (typical 64GB with 2 x 32GB Modules)
Graphics
• Intel® Graphics with AI Boost NPU
• 1 x HDMI® 2.1 port, max. resolution up to 8K@60Hz
• 1 x HDMI 2.0 (Side way,optional) up to 4K@60Hz
• 1 x optional DP 2.1 up to 8K60Hz (Co-lay with VGA or COM port)
• 1 x optional LVDS for Panel Display
• 1 x HDMI® 2.1 port, max. resolution up to 8K@60Hz
• 1 x HDMI 2.0 (Side way,optional) up to 4K@60Hz
• 1 x optional DP 2.1 up to 8K60Hz (Co-lay with VGA or COM port)
• 1 x optional LVDS for Panel Display
Network
• 1 x Realtek® RTL8111M 1 Gigabit (10/100/1000 Mb/s) LAN
• Intel® 802.11ac/ax/be WiFi-5/6/7 with BT by M.2-2230 Module
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
• Intel® 802.11ac/ax/be WiFi-5/6/7 with BT by M.2-2230 Module
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion slots
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for PCIe 4.0 x4 NVMe or SATA SSD)
• 1 x M.2 2280 (for PCIe 4.0 x4 NVMe or SATA SSD)
Storage
• 1 x M.2 2280 (for PCIe 4.0 x4 NVMe or SATA SSD)
• 2 x SATA 6Gb/s
• 2 x SATA 6Gb/s
Audio
• Realtek® ALC897 Audio Codec (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks
• 2 x 3.5mm Analog Stereo Audio jacks

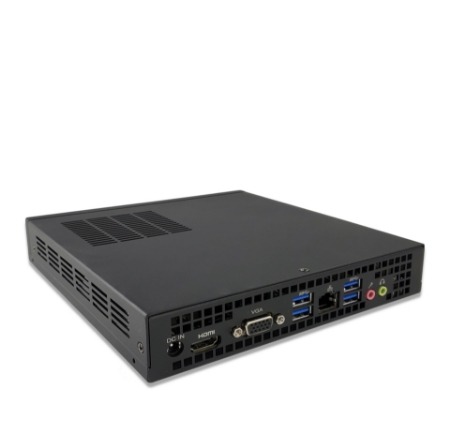

Back panel I/O
Internal I/O
• 3 x USB 2.0 headers
• 2 x USB 3.0 header
• 2 x SATA Power Headeer
• 1 x 4pin DC-in Power connector
• 2 x USB 3.0 header
• 2 x SATA Power Headeer
• 1 x 4pin DC-in Power connector
Other I/O
• Optional Side HDMI port
Front panel I/O
Function
System BIOS
• AMI® UEFI BIOS
Chassis
• 140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 7.00"(W) x 7.20"(D) x 1.40"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• Dimensions: 7.00"(W) x 7.20"(D) x 1.40"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
Power supply
• Power Input: DC12V/19V 80W-240W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Windows 11 Pro, IoT, Linux
Application
• Digital Signage, Entertainment PC, Edge AI, Audio/Video PC, AI-IoT, General SoHo Computing, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
