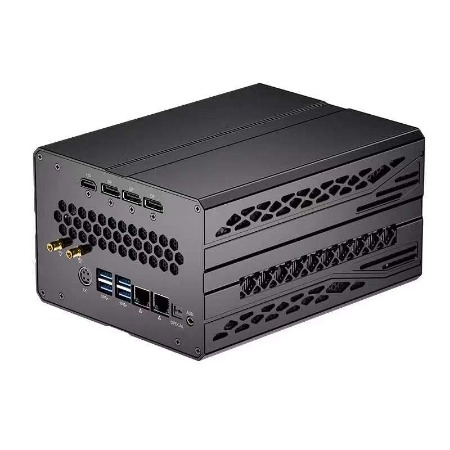

Polywell i2318
Intel® 14th Gen. Series i9, NVIDIA® RTX™ 5060 Graphics, 1 x HDMI + 3 DP, M.2 PCI 4.0 slots + 4 x USB 3.2 + 4 x USB 2.0
Featured Highlights
• Intel® 14th Gen. Core™ i9 Series Processor
• Intel® Raptor Lake Chipset
• NVIDIA® RTX™ 5060 Graphics, 1 x HDMI® 2.1 + 3 DP 1.4
• 2 x DDR5 SO-DIMM for up to 96 GB Memory
• 2 x M.2 NVMe/SSD, SATA 3.0
• 2.5 Gigabit LAN, M.2 WiFi/BT
• 4 x USB 3.2, 4 x USB 2.0, OPDCAL,
• HD Audio Sound
• DC19V Power Adapter (UL/CE/FCC Certified)
• OS Support: Windows 10/11, Linux
• Applications: GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.
CPU options
• Intel® Core™ i9-14900F 4.30/5.80GHz 8P+16E-Cores 24 Threads 32M 65/219W
Chipset
• Intel® Raptor Lake Chipset
Memory
• 2 x DDR5 SO-DIMM
• 5600/3200MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 96GB
• 5600/3200MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 96GB
Graphics
• NVIDIA® GeForce RTX™ 5060 16G Graphics, Option: 4060 8G/3060 12G Graphics
• Multi-display for up to Triple monitors
• 1 x HDMI® 2.1 ports, supporting a maximum resolution of 4K @60Hz
• 3 x DP 1.4 signal supporting a maximum resolution of 8K
• Multi-display for up to Triple monitors
• 1 x HDMI® 2.1 ports, supporting a maximum resolution of 4K @60Hz
• 3 x DP 1.4 signal supporting a maximum resolution of 8K
Network
• 2 x Gigabit (10/100/1000 Mb/s) LAN
• WiFi6 with Bluetooth 5.2
• 1 x M.2 2230 (Taken by WiFi6+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• WiFi6 with Bluetooth 5.2
• 1 x M.2 2230 (Taken by WiFi6+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
Expansion slots
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for PCIe x4 NVMe/SSD)
• 1 x M.2 2280 (for PCIe x4 NVMe/SSD)
Storage
• 1 x M.2 2280 (for PCIe x4 NVMe/SSD)
Audio
• HD Audio
• 2 x 3.5mm Analog Stereo Audio jacks
• 2 x 3.5mm Analog Stereo Audio jacks

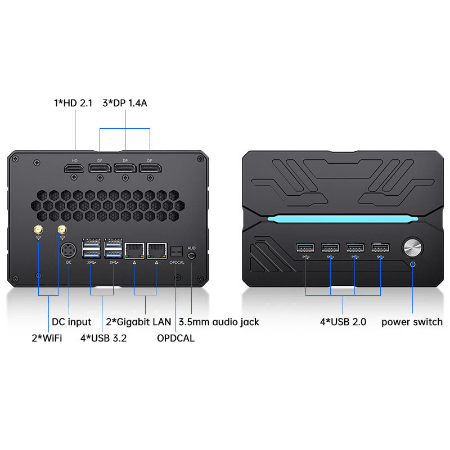

Back panel I/O
• 4 x USB 3.2 ports
• 3 x DP1.4 port
• 1 x HDMI® 2.1 ports
• 2 x LAN port
• 1 x OPDCAL
• 1 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector
• 3 x DP1.4 port
• 1 x HDMI® 2.1 ports
• 2 x LAN port
• 1 x OPDCAL
• 1 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector
Internal I/O
Other I/O
Front panel I/O
Function
System BIOS
• AMI® UEFI 128MBit BIOS
• Watchdog supported
• Watchdog supported
Chassis
• Dimensions: 8.66"(W) x 6.61"(D) x 4.52"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging)
• Cooling: Slim CPU and GPU Fans with Heatsinks

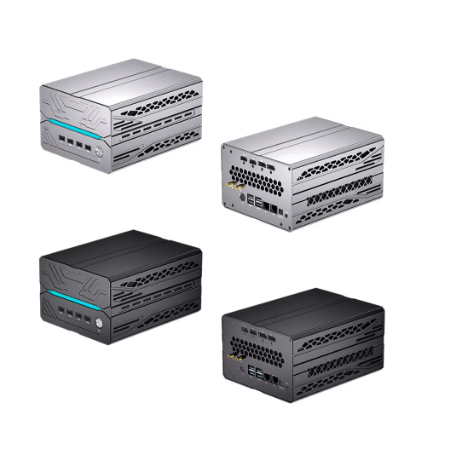

• Color: Grey as default color, option: Black, Silver, Gold. Other custom color available
• Cooling: Slim CPU and GPU Fans with Heatsinks
• Color: Grey as default color, option: Black, Silver, Gold. Other custom color available
Power supply
• Power: DC19V Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Windows 10/11, Linux
Application
• GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.
Environment
• Operating Temperature: 0 to +50 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 5% to 95% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 5% to 95% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
