Polywell JSON-THOR7L
Nano ARM® , NVIDIA® Jetson Thor 2070 TFLOPS GPU, 2 x HDMI 2.1, 7 x LAN+WiFi+SIM, 1 x RS232 + 2 x RS485
Featured Highlights
• ARM® 12/14 Core Neoverse 64bit Processor
• System-on-Chip (SoC)
• Jetson Thor T4000 1536C/Jetson Thor T5000 2560C 2070 TFLOPS, 2 x HDMI 2.1 4960x2160 4K@60Hz
• 64GB/128GB LPDDR5 Memory
• 1 x M.2-2280 for NVME SSD
• 7 x LAN RJ45, WiFi-6 + SIM for 4G/5G LTE(Station/AP)
• 4 x 3.2 Type-A, 1 x TYPE C, 1 x SIM Slot, 1 x RS232+2 x RS485
• Power Supply: DC9-36V 2-pin Phoenix
• OS Support: Linux 22.04 (Jetpack 6.2) or newer version
• Applications: Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.
CPU options
• ARM® 12Core Neoverse 64bit
• ARM® 14Core Neoverse 64bit
• ARM® 14Core Neoverse 64bit
Chipset
• System-on-Chip (SoC)
Memory
• 64GB/128GB LPDDR5X (built-in, non-changeable)
Graphics
• 2 x HDMI 2.1 Out，up to 4k@60Hz
• Blackwell GPU, 64/128 GB LPDDR5X
• Jetson Thor T4000 1536C ( 1200 TFLOPS)；
• Jetson Thor T5000 2560C( 2070 TFLOPS)；
• Blackwell GPU, 64/128 GB LPDDR5X
• Jetson Thor T4000 1536C ( 1200 TFLOPS)；
• Jetson Thor T5000 2560C( 2070 TFLOPS)；
Network
• 7 x LAN (5 x 1G, 2 x 2.5G/5G/10G) RJ45
• WiFi-6 + SIM for 4G/5G LTE(Station/AP)
• WiFi-6 + SIM for 4G/5G LTE(Station/AP)
Expansion slots
Storage
• 1 x M.2-2280 256G SSD (Option: 500G/1TB)
Audio
• Audio: 1 x 3.5mm Combo Jack

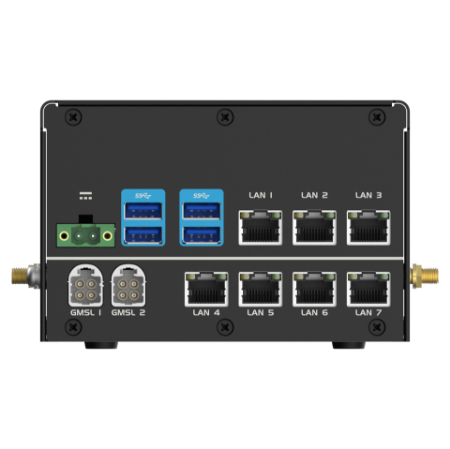

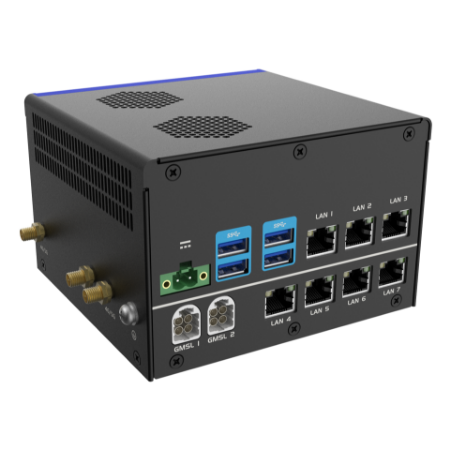

Back panel I/O
• 7 x LAN RJ45
• 2 x HDMI 2.1 4960x2160 4K@60Hz
• USB: 4 x 3.2 Type-A Rear, 1 x 3.2 Type-C Front
• Video: 2 x Rear Mini Fakra (8-ch GMSL2), 1 x HDMI 2.1
• Audio: 1 x 3.5mm Combo Jack
• 2 x HDMI 2.1 4960x2160 4K@60Hz
• USB: 4 x 3.2 Type-A Rear, 1 x 3.2 Type-C Front
• Video: 2 x Rear Mini Fakra (8-ch GMSL2), 1 x HDMI 2.1
• Audio: 1 x 3.5mm Combo Jack
Internal I/O
Other I/O

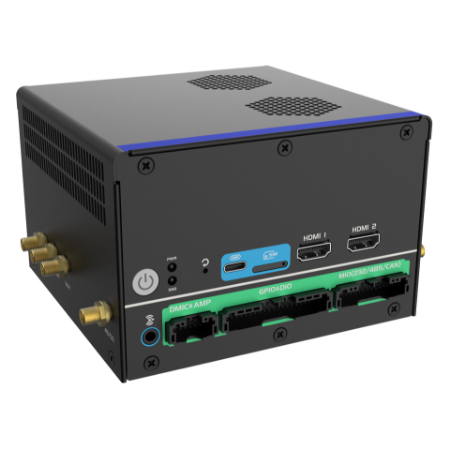

Front panel I/O
• 1 x 28pin Car MIO (Front)：4 x CAN-12V, 1 x RS232, 2 x RS485；
• 1 x 40pin Car MIO (Front)：32bit GPIO (16bit Optocoupler isolation)
• 1 x 40pin Car MIO (Front)：32bit GPIO (16bit Optocoupler isolation)
Function
• TPM 2.0
• Watchdog
• 1x TTL Debug
• Watchdog
• 1x TTL Debug
System BIOS
Chassis
• Nano-Size Sheet-metal, Desktop, wallmount, DIN
• Dimensions: 130L x 125W x 85H (mm)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/ wall mount brackets
• Dimensions: 130L x 125W x 85H (mm)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/ wall mount brackets
Power supply
• Power: DC9-36V 2-pin Phoenix
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Ubuntu22.04 (Jetpack6.2)
Application
• Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.
Environment
• Operating Temperature: -20 to +75 C
• Non operating temperature: -20 to +75 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
• Non operating temperature: -20 to +75 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
