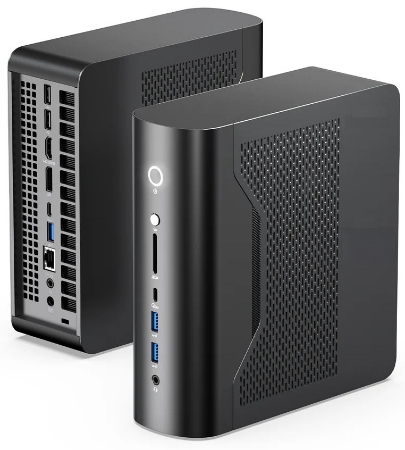

Polywell Mini-AI935Max
AMD Ryzen™ AI Max+ 395 Quad Display Mini Workstation
Featured Highlights
• AMD Ryzen™ AI Max+ 395 (16C/32T, 5.1GHz max).
• Radeon 8060S Graphics, 50 TOPS NPU, 126 TOPS overall
• 8 x 16GB LPDDR5-8000MHz, up to 128GB
• 2TB NVMe SSD, expandable to 8TB
• 1 x Intel® I226-V 2.5G LAN
• Wi-Fi 7, BT5.4, HDMI 2.1, USB-C 4.0
• Power Supply: DC19V input
• OS Support: Windows 11 pro, Linux
• Applications: AI-IoT, Digital Signage, POS/Kiosk, IPTV, Traffic Controller, etc.
CPU options
• AMD Ryzen™ AI Max+ 395 (16 Core, 32 Threads, 80M Total Cache, Up to 5.1 GHz)
Chipset
• Integrated SoC (no separate chipset)
Memory
• 8 x DDR5 SO-DIMM 5600MHz Slots
• Supports up to 128GB
• Supports up to 128GB
Graphics
• AMD Radeon 8060S Graphics
• AMD Ryzen™ AI (NPU TOPS: 50 TOPS, Overall TOPS: up to 126 TOPS)
• Supports 4 Displays
• 1 x DP 1.4, 1 x HDMI 2.1, 2 x Type-C to (HDMI/DP)
• Supports 8K @60Hz, 4K Max @240Hz
• Supports Dolby® Vision
• AMD Ryzen™ AI (NPU TOPS: 50 TOPS, Overall TOPS: up to 126 TOPS)
• Supports 4 Displays
• 1 x DP 1.4, 1 x HDMI 2.1, 2 x Type-C to (HDMI/DP)
• Supports 8K @60Hz, 4K Max @240Hz
• Supports Dolby® Vision
Network
• 1 x Intel® I226-V 2.5G LAN
• M.2 2230 RZ717 Triple Band Wi-Fi 7 (2.4GHz/5GHz/6GHz), BT5.4
• M.2 2230 RZ717 Triple Band Wi-Fi 7 (2.4GHz/5GHz/6GHz), BT5.4
Expansion slots
• 1 x M.2 2230 Slot
Storage
• 2TB M.2 2280 PCIe 4.0×4 NVMe SSD
• 2 x M.2 2280 PCIe 4.0×4 NVMe SSD Slot
• 2 x M.2 2280 PCIe 4.0×4 NVMe SSD Slot
Audio
• 1 x audio

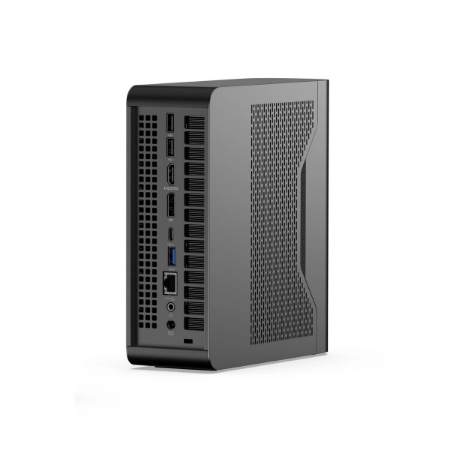

Back panel I/O
• 1 x HDMI® 2.1 ports
• 1 x DP 1.4 ports
• 1 x USB-A 3.2
• 2 x USB-A 2.0
• 1 x 2.5G LAN
• 1 x Audio
• 1 x USB-C 4.0 ( 15W Output, DP 8K@60Hz, 40Gbps)
• 1 x 1100~240V, 50~60Hz, 240W DC IN
• 1 x DP 1.4 ports
• 1 x USB-A 3.2
• 2 x USB-A 2.0
• 1 x 2.5G LAN
• 1 x Audio
• 1 x USB-C 4.0 ( 15W Output, DP 8K@60Hz, 40Gbps)
• 1 x 1100~240V, 50~60Hz, 240W DC IN
Internal I/O
Other I/O
Front panel I/O
Function
System BIOS
• Watchdog supported
Chassis
• Nano size enclosure 205(W) x 192(D) x 70(H)
• Net Weight: 2 lb. (Net) 5 lb. (gross with packaging)
• Optional VESA Bracket Available
• Net Weight: 2 lb. (Net) 5 lb. (gross with packaging)
• Optional VESA Bracket Available
Power supply
• Power: 100-240V, DC19V 6.3A 240W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Windows 11, Linux
Application
• AI-IoT, Digital Signage, POS/Kiosk, IPTV, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
