Polywell Nano-Jetson 34/67/117/157
Nano ARM® , NVIDIA® Jetson Orin Nano/NX GPU, Dual LAN+WiFi/BT, SIM, 5 x USB, 2 x RS485+2 x RS232
Featured Highlights
• ARM® Cortex®-A78 Processor
• RK3588 Chipset
• NVIDIA® Jetson Orin Nano/NX GPU, HDMI 2.1
• 4GB/8GB/16GB Onboard LPDDR5 Memory
• 1 x M.2-2280 for NVME SSD, 1 x TF Slot
• 2 x Gigabit LAN, Onboard WiFi/BT.
• 5 x USB, 2 x RS485+2 x RS232
• 1 x 3.5mm Combo Jack
• Power Supply: DC12V Power Adapter (UL/CE/FCC Certified)
• OS Support: Debian 12 / Ubuntu 20.04 or newer version
• Applications: Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.
CPU options
• ARM® Cortex®-A78 6 Core 1.5 GHz
• ARM® Cortex®-A78 6 Core 2.0 GHz
• ARM® Cortex®-A78 8 Core 2.0 GHz
• ARM® Cortex®-A78 6 Core 2.0 GHz
• ARM® Cortex®-A78 8 Core 2.0 GHz
Chipset
• Rockchip RK3588 (SOC)
Memory
• 4GB/8GB/16GB LPDDR5 (built-in, non-changeable)
Graphics
• 1 x HDMI 2.1 Out，up to 8k@30Hz
• Ampere GPU, 4/8/16GB LPDDR5
• Jetson Orin Nano 4GB: 512 NVIDIA® CUDA® cores, 16 Tensor cores, 625Mhz, 7-10w ( 34 TOPS INT8 )；
• Jetson Orin Nano 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 625Mhz, 7-15w (67 TOPS INT8 )；
• Jetson Orin NX 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 765Mhz, 10-20w ( 117 TOPS INT8 )；
• Jetson Orin NX 16GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 918Mhz,10-25w ( 157 TOPS INT8 )；
• Ampere GPU, 4/8/16GB LPDDR5
• Jetson Orin Nano 4GB: 512 NVIDIA® CUDA® cores, 16 Tensor cores, 625Mhz, 7-10w ( 34 TOPS INT8 )；
• Jetson Orin Nano 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 625Mhz, 7-15w (67 TOPS INT8 )；
• Jetson Orin NX 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 765Mhz, 10-20w ( 117 TOPS INT8 )；
• Jetson Orin NX 16GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 918Mhz,10-25w ( 157 TOPS INT8 )；
Network
• 2 x Gigabit (10/100/1000 Mb/s) LAN
• Dual-Band (2.4/5.0GHz) WiFi/BT
• 1 x MiniPCIe full size slot (for 4G Wireless Module)
• Wake on LAN, PXE boot (Diskless) supported
• Dual-Band (2.4/5.0GHz) WiFi/BT
• 1 x MiniPCIe full size slot (for 4G Wireless Module)
• Wake on LAN, PXE boot (Diskless) supported
Expansion slots
• 1 x M.2 Key-B，for 5G Module (FM650-CN / RM500U-CN）
• 1 x M.2 Key-E，for WiFi-6/BT (AP6275P)
• 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.)
• 1 x M.2 Key-E，for WiFi-6/BT (AP6275P)
• 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.)
Storage
• 1 x M.2-2280 for NVMe SSD
• 1 x TF card reader
• 1 x TF card reader
Audio
• 1 x 3.5mm Audio Out jack

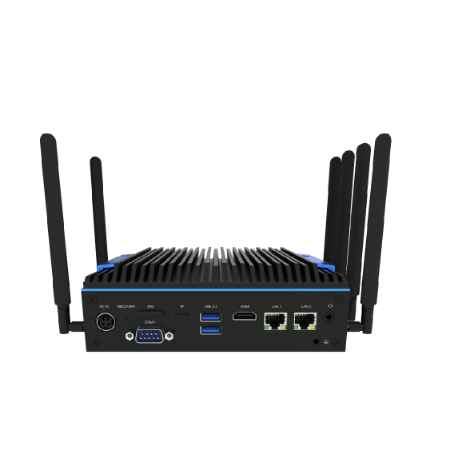

Back panel I/O
• 2 x USB 3.0 port
• 1 x HDMI® port
• 2 x LAN port
• 1 x RS232 Serial COM port (Optional RS485)
• 1 x SIM card slot
• 1 x TF card reader
• 1 x 3.5mm audio jack
• 1 x DC-In Power Connector
• 1 x HDMI® port
• 2 x LAN port
• 1 x RS232 Serial COM port (Optional RS485)
• 1 x SIM card slot
• 1 x TF card reader
• 1 x 3.5mm audio jack
• 1 x DC-In Power Connector
Internal I/O
• 1 x 10pin GPIO
• 1 x 10pin COM
• 1 x SIM Slot
• 2 x JLED Header
• 1 x JPWR
• 2 x CPU FAN Header
• 1 x Buzzer
• 1 x CAN Header
• 2 x Internal I/O
• 1 x Recovery Button
• 1 x 10pin COM
• 1 x SIM Slot
• 2 x JLED Header
• 1 x JPWR
• 2 x CPU FAN Header
• 1 x Buzzer
• 1 x CAN Header
• 2 x Internal I/O
• 1 x Recovery Button

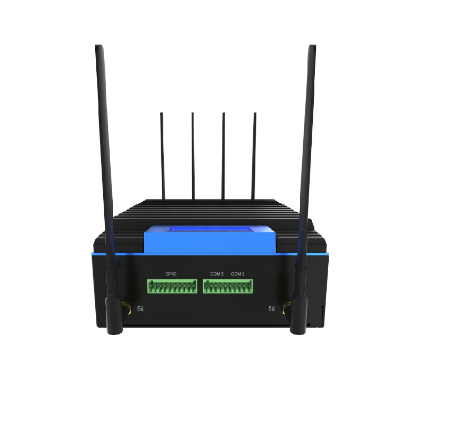

Other I/O
• 1 x 10pin Phoenix Port（1*RS232+1*RS485）
• 1 x 10pin Phoenix Port（8 GPIOs, 4in/4out)
• 1 x DB9 port (RS232/485 selectable）
• 1 x 4pin header（RS232/TTL selectable）
• 1 x 10pin Phoenix Port（8 GPIOs, 4in/4out)
• 1 x DB9 port (RS232/485 selectable）
• 1 x 4pin header（RS232/TTL selectable）

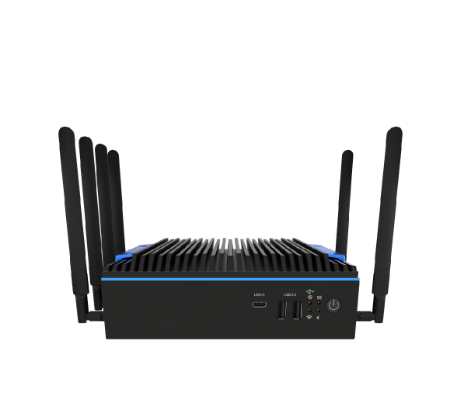

Front panel I/O
• 2 x USB 2.0 port
• 1 x Type-C USB port
• 1 x Type-C USB port
Function
System BIOS
Chassis
• Nano Fanless Enclosure
• Dimensions: 187mm x 131mm x 57mm
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/ wall mount brackets
• Dimensions: 187mm x 131mm x 57mm
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/ wall mount brackets
Power supply
• Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Debian 12 / Ubuntu 20.04 or newer version
Application
• Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.
Environment
• Operating Temperature: -25 to +70 C
• Non operating temperature: -30 to +80 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
• Non operating temperature: -30 to +80 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
