Polywell Nano-U12L2C
Fanless 12th Gen. Alder Lake-u/P u-Series, 2 Intel 2.5G LAN 8K Graphics DP+HDMI 2.0, 6 USB +Type-C + COM
Featured Highlights
• Intel®12th Generation Core™ i7/i5/i3/Celeron®/Pentium® Processor
• Intel® Alder Lake-u/p Platform (SOC)
• Intel® Iris® Xe / 12th Gen UHD Graphics 4K Display, DP+2 HDMI 2.0+Thunderbolt 4.0
• 2 DDR4 SO-DIMM for up to 64GB Memory
• SATA-6Gb/s, 2 M.2 SSD/NVMe
• Dual Gigabit LAN, M.2 WiFi/BT
• 6 USB ports, Type-C USB 3.2 (Thunderbolt 4.0), 2 COM
• 5.1 ALC662 Audio Sound
• DC12V/19V 60W Power Adapter (UL/CE/FCC Certified)
• OS Support: Windows 11/10, IoT, Linux, FreeBSD
• Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge System, etc.
CPU options
• Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20Threads 24M 20/28W
• Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W
• Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W
• Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W
• Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W
• Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12Threads 12M 20/28W
• Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W
• Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W
• Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W
• Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W
Option:
• 13th Generation Intel® Core™ Raptor Lake u/p series
• Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U
• Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U
• Intel® Core™ i3-1315U, i3-1305U, i3-1315U
• Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W
• Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W
• Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W
• Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W
• Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12Threads 12M 20/28W
• Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W
• Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W
• Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W
• Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W
Option:
• 13th Generation Intel® Core™ Raptor Lake u/p series
• Intel® Core™ i7-1360P, i7-1370P, i7-1365U, i7-1335U
• Intel® Core™ i5-1350P, i5-1340P, i5-1345U, i5-1335U
• Intel® Core™ i3-1315U, i3-1305U, i3-1315U
Chipset
• Intel® Alder Lake-u/p Platform (SOC)
Memory
• 2 x DDR4 SO-DIMM
• 3200/2666MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB
• 3200/2666MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB
Graphics
• Intel® Iris® Xe or 12th Gen UHD Graphics
• Supports Quad Displays with 8K Graphics
• 1 x eDP header
• 2 x HDMI 2.0, max. resolution up to 4096x2160 4K at 60Hz
• 1 x DP 1.4, max. resolution up to 8K at 60Hz
• 1 x Type-C (ThunderBolt4.0), supports DP 1.4 or HDMI 2.1
• Supports Quad Displays with 8K Graphics
• 1 x eDP header
• 2 x HDMI 2.0, max. resolution up to 4096x2160 4K at 60Hz
• 1 x DP 1.4, max. resolution up to 8K at 60Hz
• 1 x Type-C (ThunderBolt4.0), supports DP 1.4 or HDMI 2.1
Network
• 2 x Intel® I226v 2.5Gigabit (10/100/1000/2500 Mb/s) LAN
• 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
• 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion slots
• 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module)
• 2 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)
• 2 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)
Storage
• 1 x SATA 6Gb/s
• 2 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)
• 2 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)
Audio
• Realtek ALC662 6-channel 5.1
• 2 x 3.5mm Analog Stereo Audio jacks
• 2 x 3.5mm Analog Stereo Audio jacks
Back panel I/O
• 2 x USB 2.0 ports
• 2 x HDMI 2.0 ports
• 1 x DP 1.4
• 2 x LAN ports
• 1 x DC-In 2.5mm Power Connector
• 2 x HDMI 2.0 ports
• 1 x DP 1.4
• 2 x LAN ports
• 1 x DC-In 2.5mm Power Connector
Internal I/O
• 1 x USB 2.0 header (for 2 x USB 2.0 ports)
• 2 x Serial COM headers (RS232 + RS232/RS485)
• 1 x eDP header (for Panel Display)
• 2 x Serial COM headers (RS232 + RS232/RS485)
• 1 x eDP header (for Panel Display)
Other I/O
Front panel I/O
• 2 x USB 3.0 ports (Front), 2 x USB 2.0 (Front)
• 1 x Type-C Thunderbolt 4.0 port (Front)
• 2 x 3.5mm Audio Jacks (Front)
• 1 x Type-C Thunderbolt 4.0 port (Front)
• 2 x 3.5mm Audio Jacks (Front)
Function
System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
• Watchdog supported
• Watchdog supported
Chassis

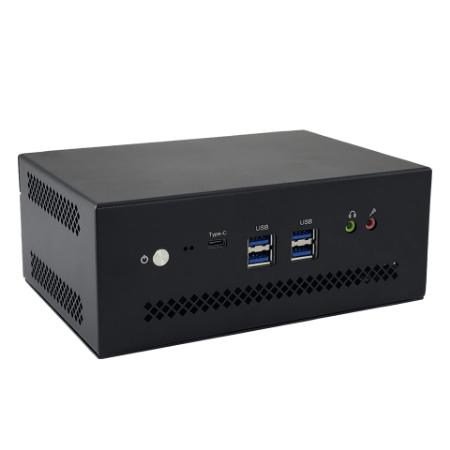

• Nano-U10L2C: Nano-10 Chassis with heatpipe blower. 6.61"(W) x 5.04"(D) x 1.50"(H), 2 lb. (Net)

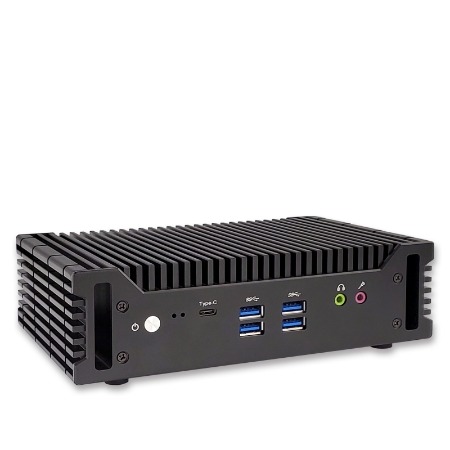

• Nano-U12FL2C: Nano-F15 Fanless Chassis 7.6"(W) x 4.90"(D) x 2.1"(H) 2.75 lb. (net) 6 lb. (gross)
• Nano-U12FL2C: Nano-10B Chassis
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, DIN, wall mount or rackmount brackets
• Nano-U12FL2C: Nano-F15 Fanless Chassis 7.6"(W) x 4.90"(D) x 2.1"(H) 2.75 lb. (net) 6 lb. (gross)
• Nano-U12FL2C: Nano-10B Chassis
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, DIN, wall mount or rackmount brackets
Power supply
• Power: DC12/19V 60W or higher wattage Power Adapter
2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included,
European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included,
European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Windows 11/10, IoT, Linux, FreeBSD
Application
• Set Top Box, Network Appliance, Digital Signage,
POS/Kiosk, AI-IoT/Edge System, Client Computing, etc.
POS/Kiosk, AI-IoT/Edge System, Client Computing, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
