Polywell Nano-UC14L2V3c
14th Gen Meteor Lake-U/H, Arc® 8K Graphics, 3 Display 2 M.2-NVMe, 2LAN+M.2 WiFi/BT, ThunderBolt 4.0 Type-C, HDMI+DP
Featured Highlights
• 14th Gen. Intel® Core™ Ultra i9/i7/i5-U/H Processor
• Intel® Meteor Lake Platform (SOC)
• Intel® Arc® 8K Graphics, HDMI 2.1 + 1 DP 2.1 + Type-C 3 Display
• 2 DDR5 SO-DIMM for up to 96GB Memory
• 2 M.2-2280 SSD/NVMe x4
• 2 Intel 2.5G LAN (support vPro) + M.2 WiFi/BT
• 3 USB 3.2, 2 USB 2.0, 1 Type-C (USB 3.2)
• 2 x 3.5mm HD Audio Jacks
• DC12V or DC19V Power (UL/CE/FCC Certified)
• OS Support: Windows11/Windows10/Linux
• Applications: For SoHo PC, Digital Signage, Network Security, POS/Kiosk, Edge AI, IoT, etc.
CPU options
• Intel® Core™ Ultra 7 165H vPro 1.4/5GHz 16 Cores 22 Threads 24M 20/28W
• Intel® Core™ Ultra 7 155U 1.7/4.8GHz 12 Cores 14 Threads 12M 12/15W
• Intel® Core™ Ultra 5 135H vPro 1.7/4.6GHz 14 Cores 18 Threads 18M 20/28W
• Intel® Core™ Ultra 5 125U 1.3/4.3GHz 12 Cores 14 Threads 12M 12/15W
• Intel® Core™ Ultra 7 265H vPro 1.7/5.3GHz 16 Cores 16 Threads 24M 20/28W
• Intel® Core™ Ultra 7 255U 1.7/5.2GHz 12 Cores 14 Threads 12M 12/15W
• Intel® Core™ Ultra 5 235H vPro 1.8/5GHz 14 Cores 14 Threads 18M 20/28W
• Intel® Core™ Ultra 5 225U 1.3/4.8GHz 12 Cores 14 Threads 12M 12/15W
• Intel® Core™ Ultra 7 155U 1.7/4.8GHz 12 Cores 14 Threads 12M 12/15W
• Intel® Core™ Ultra 5 135H vPro 1.7/4.6GHz 14 Cores 18 Threads 18M 20/28W
• Intel® Core™ Ultra 5 125U 1.3/4.3GHz 12 Cores 14 Threads 12M 12/15W
• Intel® Core™ Ultra 7 265H vPro 1.7/5.3GHz 16 Cores 16 Threads 24M 20/28W
• Intel® Core™ Ultra 7 255U 1.7/5.2GHz 12 Cores 14 Threads 12M 12/15W
• Intel® Core™ Ultra 5 235H vPro 1.8/5GHz 14 Cores 14 Threads 18M 20/28W
• Intel® Core™ Ultra 5 225U 1.3/4.8GHz 12 Cores 14 Threads 12M 12/15W
Chipset
• Intel® Meteor Lake Platform (SOC)
Memory
• 2 x DDR5 SO-DIMM, up to 96GB
• 5600MHz unbuffered non-ECC (Dual Channel I/O)
• 5600MHz unbuffered non-ECC (Dual Channel I/O)
Graphics
• Intel® Arc® 8K Graphics
• Support 3 Display
• 1 x HDMI 2.1 8K 60Hz
• 1 x DP 2.1 8K 60Hz
• 1 x Type-C (ThunderBolt 4.0) support HDMI/DP 4K/8K
• Option: Additional Graphics by M.2 Module
• Support 3 Display
• 1 x HDMI 2.1 8K 60Hz
• 1 x DP 2.1 8K 60Hz
• 1 x Type-C (ThunderBolt 4.0) support HDMI/DP 4K/8K
• Option: Additional Graphics by M.2 Module
Network
• 2 x Intel® i226V 2.5Gigabit (10/100/1000/2500 Mb/s) LAN
• vPro supported
• 1 x M.2 2230 (for Wi-Fi 4/5/6/7 + BT or Other Module)
• Option: 1 x M.2-2280 for additional LAN module
• Wake on LAN, PXE boot (Diskless) supported
• vPro supported
• 1 x M.2 2230 (for Wi-Fi 4/5/6/7 + BT or Other Module)
• Option: 1 x M.2-2280 for additional LAN module
• Wake on LAN, PXE boot (Diskless) supported
Expansion slots
• 1 x M.2-2280 PCIe 4.0 x4 for NVMe SSD or other add-on
• 1 x M.2 2280 PCIe 3.0 x4 for NVMe/SATA SSD or other add-on
• 1 x M.2 2230 (for Wi-Fi + BT or Other Module)
• 1 x Type-C ThunderBolt 4.0 support Type-C Hub for other I/O
• 1 x M.2 2280 PCIe 3.0 x4 for NVMe/SATA SSD or other add-on
• 1 x M.2 2230 (for Wi-Fi + BT or Other Module)
• 1 x Type-C ThunderBolt 4.0 support Type-C Hub for other I/O
Storage
• 1 x M.2 2280 (for PCIe 4.0 x4 NVMe SSD)
• 1 x M.2 2280 (for PCIe 3.0 x4 NVMe or SATA SSD)
• 1 x M.2 2280 (for PCIe 3.0 x4 NVMe or SATA SSD)
Audio
• Realtek HD 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks
• 2 x 3.5mm Analog Stereo Audio jacks

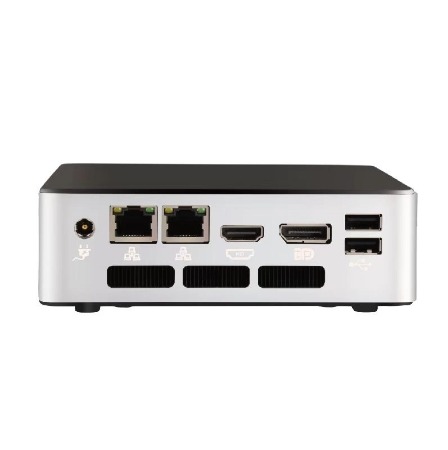

Back panel I/O
• 2 x USB 2.0
• 1 x DP 2.1
• 1 x HDMI 2.1
• 2 x RJ45 LAN
• 1 x DC-In 2.5mm Power Connector
• 1 x DP 2.1
• 1 x HDMI 2.1
• 2 x RJ45 LAN
• 1 x DC-In 2.5mm Power Connector
Internal I/O
Other I/O

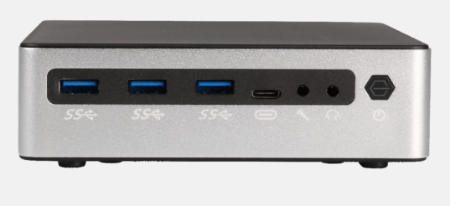

Front panel I/O
• 3 x USB 3.2 Gen 2 (Front)
• 1 x Type-C (3.2) ThunderBlot 4.0 (Front)
• 2 x 3.5mm Audio in/Out (Front)
• 1 x Power Button with Power LED (Front)
• 1 x Type-C (3.2) ThunderBlot 4.0 (Front)
• 2 x 3.5mm Audio in/Out (Front)
• 1 x Power Button with Power LED (Front)
Function
System BIOS
• AMI® UEFI 128MBit BIOS
• Watchdog supported
• Watchdog supported
Chassis
• Nano Chassis with blower fan 5.5”(W) x 4.95”(D) x 1.55”(H)
• Option: Aluminum Fanless for u-series CPU no Turbo Mode
• Net Weight: 3lb (net) 6lb (gross with packaging)
• Color: Silver/Black (other color and custom logo are available with MOQ orders)
• Supports VESA/wall-mount/DIN, mini-1U Tray (order separately)
• Option: Aluminum Fanless for u-series CPU no Turbo Mode
• Net Weight: 3lb (net) 6lb (gross with packaging)
• Color: Silver/Black (other color and custom logo are available with MOQ orders)
• Supports VESA/wall-mount/DIN, mini-1U Tray (order separately)
Power supply
• Power: DC12V or DC19V 60W-120W Power Adapter 2.5mm plug (UL/CE/FCC Certified) Optional with Lock
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Windows11/Windows10/Linux
Application
• SoHo PC, Digital Signage, Network Security, POS/Kiosk, Edge AI, OpenVino, IoT, etc
Environment
• Operating Temperature: -20 to +45C (Optional 60c)
• Non-operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
• Non-operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
