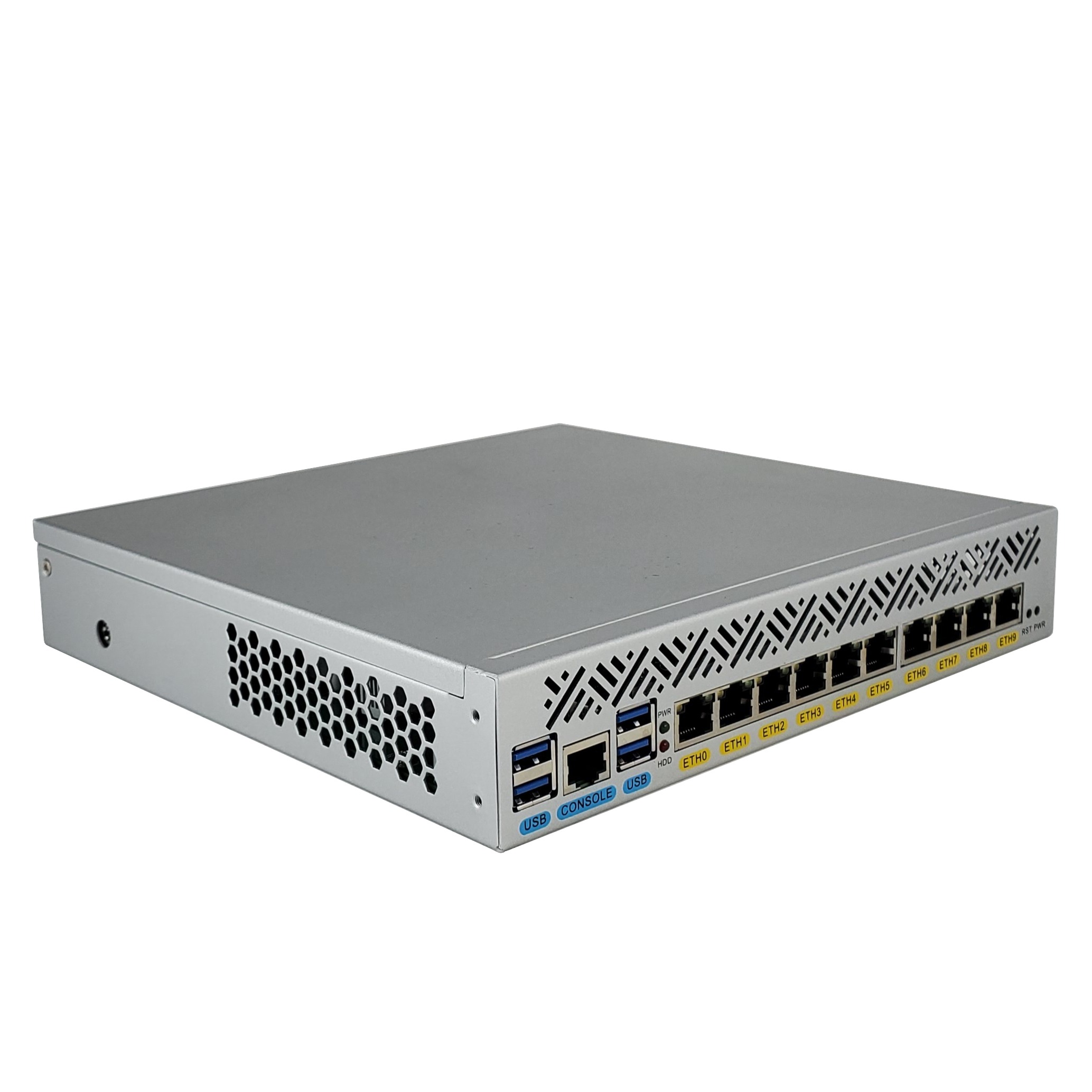

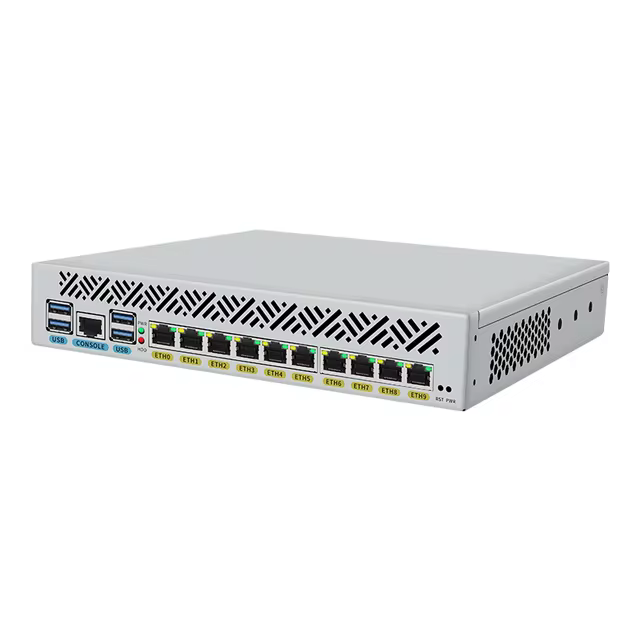

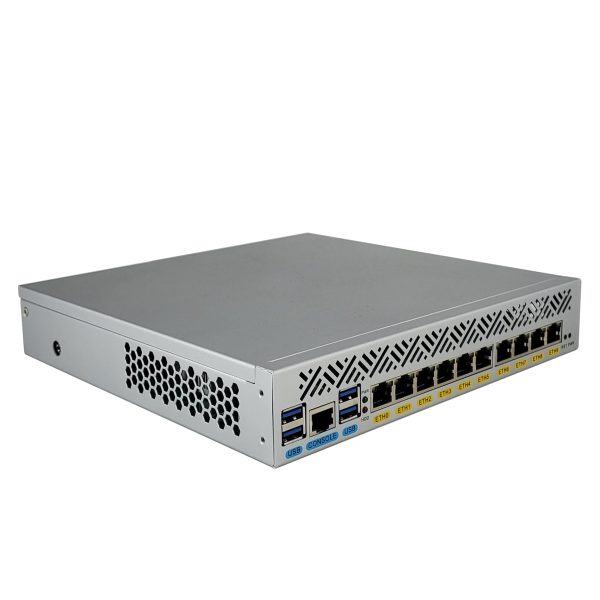

Polywell NET-U10L10
10th Gen. Comet Lake-u, UHD 10th Gen. 2 HDMI 4K Displays, mSATA+ mini PCI-E slot, 10 LAN+4 USB 3.0
Featured Highlights
• Intel® Core™ i7/Pentium®-u Processor
• Intel® Comet Lake-u Platform (SOC)
• Intel® UHD 10th Gen. Graphics, 4K Resolution, 2 HDMI®
• 2 DDR4 SO-DIMM for up to 64GB Memory
• 2.5" SATA HDD/SSD, mSATA SSD
• 10 Intel® LAN, MiniPCIe WiFi/BT or 3G/4G
• 4 USB 3.0, RJ45 COM
• DC12V 5A Power Adapter (UL/CE/FCC Certified)
• OS Support: Linux, Windows 10/11
• Applications: High Speed Router, Firewall, VPN, Network Security, etc
CPU options
• Intel® Core™ i7-10810u vPro 1.60/4.90GHz 6Core 12Threads 12M 12.5/25W
• Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W
• Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W
• Intel® Pentium® Gold 5405u 2.3GHz 2Core 4Threads 2M 12.5/15W
• Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W
• Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W
• Intel® Pentium® Gold 5405u 2.3GHz 2Core 4Threads 2M 12.5/15W
Chipset
• Intel® Comet Lake-u Platform (SOC)
Memory
• 2 x DDR4 SO-DIMM
• 2933/2666MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB
• 2933/2666MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB
Graphics
• Intel® UHD 10th Gen. Graphics, 4K Resolution, HDR 10Bit color
• Support 2 Graphics ports
• 2 x HDMI®, supporting a maximum resolution of 4K @60Hz
• Support 2 Graphics ports
• 2 x HDMI®, supporting a maximum resolution of 4K @60Hz
Network
• 10 x Intel® I210 Gigabit (10/100/1000Mb/s) LAN
• 1 x MiniPCIe full size slot (for WiFi+BT or 3G/4G Pair w/ SIM)
• 1 x SIM socket (for 3G/4G option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
• 1 x MiniPCIe full size slot (for WiFi+BT or 3G/4G Pair w/ SIM)
• 1 x SIM socket (for 3G/4G option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion slots
• 1 x MiniPCIe full size slot (for WiFi+BT or 4G-LTE Pair w/ SIM)
Storage
• 1 x 2.5" SATA-6Gb/s HDD/SSD
• 1 x mSATA-6Gb/s SSD
• 1 x mSATA-6Gb/s SSD
Audio
Back panel I/O
• 2 x HDMI® ports
Internal I/O
Other I/O
• 1 x DC-In 2.5mm Power Connector (Side)

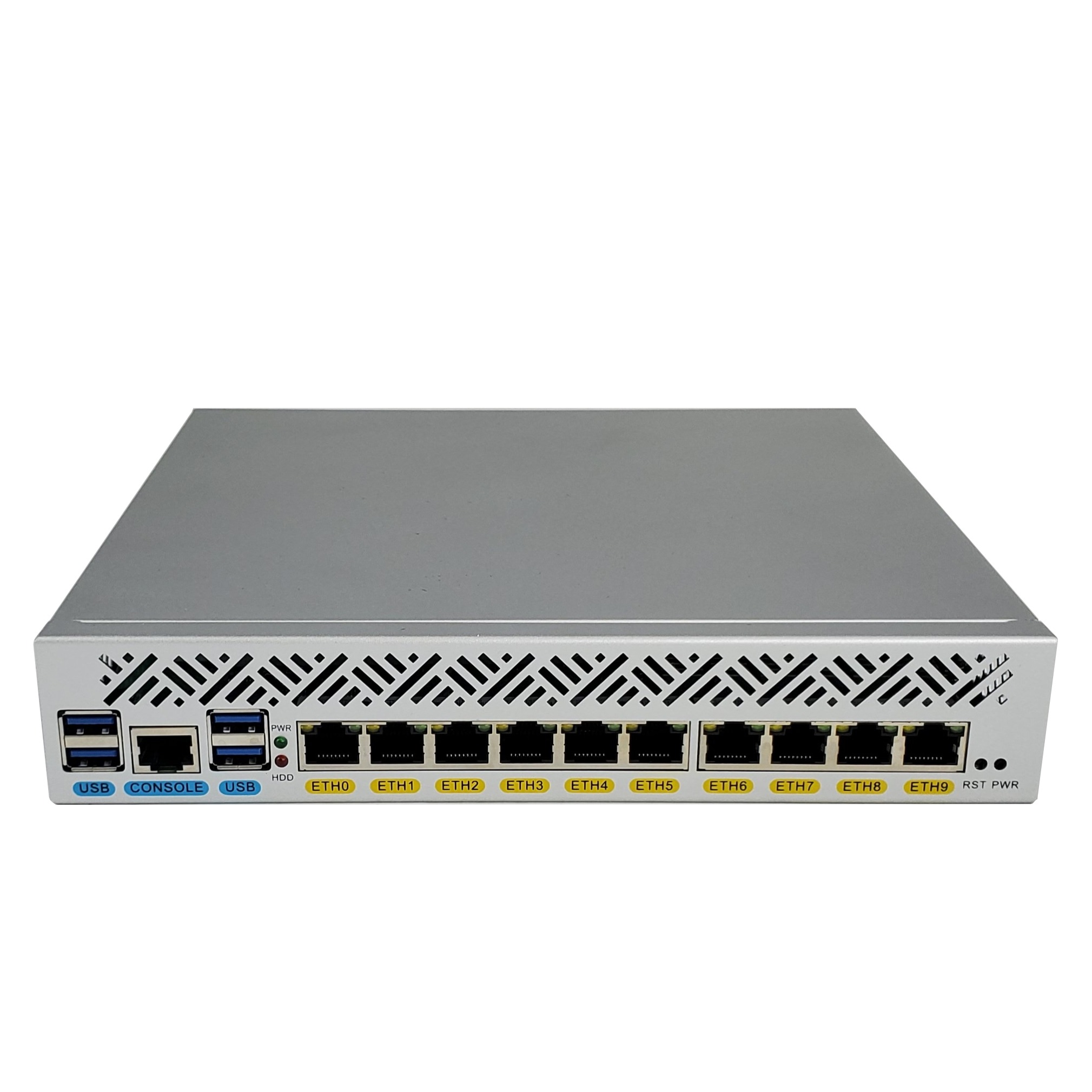

Front panel I/O
• 10 x LAN ports (Front)
• 1 x RJ45 Serial Console port (Front)
• 4 x USB 3.0 ports (Front)
• 1 x RJ45 Serial Console port (Front)
• 4 x USB 3.0 ports (Front)
Function
System BIOS
• AMI® UEFI BIOS
• Watchdog supported
• Watchdog supported
Chassis
• Slim Metal Chassis
• Dimensions: 9.45"(W) x 9.21"(D) x 1.69"(H), Weight: 3.31 lb. (Net) 6 lb. (gross with packaging)
• Color: Silver as default color, custom colors available with special order
• Supports VESA mount. Rack mount
• Dimensions: 9.45"(W) x 9.21"(D) x 1.69"(H), Weight: 3.31 lb. (Net) 6 lb. (gross with packaging)
• Color: Silver as default color, custom colors available with special order
• Supports VESA mount. Rack mount
Power supply
• Power: DC12V 5A~10A 60~120W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Linux, Windows 10/11
Application
• High Speed Router, Firewall, VPN, Network Security, etc
Environment
• Operating Temperature: -20 to +60 C (Please contact product specialist for details)
• Non operating temperature: 0 to +80 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 10% to 90% (non-condensing)
• Non-operating Relative Humidity: 10% to 90% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
• Non operating temperature: 0 to +80 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 10% to 90% (non-condensing)
• Non-operating Relative Humidity: 10% to 90% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
