Polywell NUC-N305H2
Alder Lake-N, 2 HDMI , 1 x LAN, 3 x USB3.2 + 1 x USB2.0
Featured Highlights
• Intel® 12th Gen-N Processor
• Intel® Alder Lake-N Platform (SOC)
• Intel® UHD Graphics, 2 x HDMI 2.0
• 1 x SO-DIMM DDR4 2600/3200MHz slot up to 32GB
• Supports 2 x M.2 2280/2242 NVME/NGFF Dual SSD.
• Onboard Intel AC7260 WIFI5 & BT4.2
• 3 x USB 3.2, 1 x USB 2.0
• ALC897 HD Audio
• DC12V Power Adapter (UL/CE/FCC Certified)
• OS Support: Windows 10/11, Ubuntu etc.
• Applications: Digital Signage, Edge AI, AI-IoT, Audio/Video PC, Network Security, Embedded Longevity
CPU options
• Intel® Core™ i3-N350 3.90GHz 8Cores 8Threads 6M 7W
• Intel® Core™ i3-N355 3.90GHz 8Cores 8Threads 6M 9W/15W
• Intel® N100 3.40GHz 4Cores 4Threads 6M 6W
• Intel® N200 3.70GHz 4Cores 4Threads 6M 6W
• Intel® Core™ i3-N355 3.90GHz 8Cores 8Threads 6M 9W/15W
• Intel® N100 3.40GHz 4Cores 4Threads 6M 6W
• Intel® N200 3.70GHz 4Cores 4Threads 6M 6W
Chipset
• Intel® Alder Lake-N platform (SOC)
Memory
• 1 x DDR4 SO-DIMM
• 2600/3200 MHz unbuffered non-ECC (Single channel I/O)
• Supports up to 32GB
• 2600/3200 MHz unbuffered non-ECC (Single channel I/O)
• Supports up to 32GB
Graphics
• Intel® 12th Generation UHD Graphics
• Multi Display Output
• 2 x HDMI® 2.0 supports 4K 60Hz resolution
• Multi Display Output
• 2 x HDMI® 2.0 supports 4K 60Hz resolution
Network
• 1 x Realtek® RT8111H Gigabit (10/100/1000 Mb/s) LAN
• Onboard Intel AC7260 WIFI5 & BT4.2
• Wake on LAN, PXE boot (Diskless) supported
• Onboard Intel AC7260 WIFI5 & BT4.2
• Wake on LAN, PXE boot (Diskless) supported
Expansion slots
Storage
• 2 x M.2 2280/2242 (for SATA-6Gb/s or NVMe SSD)
Audio
• HD Audio
• 1 x 3.5mm Analog Stereo In/Out Audio Combo jack
• 1 x 3.5mm Analog Stereo In/Out Audio Combo jack

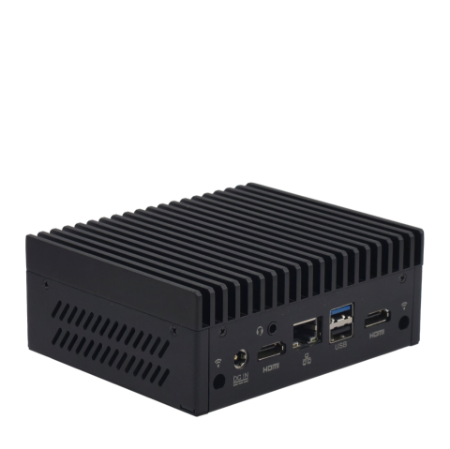

Back panel I/O
• 1 x USB 3.2 ports
• 1 x USB 2.0 ports
• 2 x HDMI® 2.0 port
• 1 x LAN ports
• 1 x 3.5mm Audio jack (Front)
• 1 x DC-In Power Connector(2.5mm)
• 1 x USB 2.0 ports
• 2 x HDMI® 2.0 port
• 1 x LAN ports
• 1 x 3.5mm Audio jack (Front)
• 1 x DC-In Power Connector(2.5mm)
Internal I/O
Other I/O

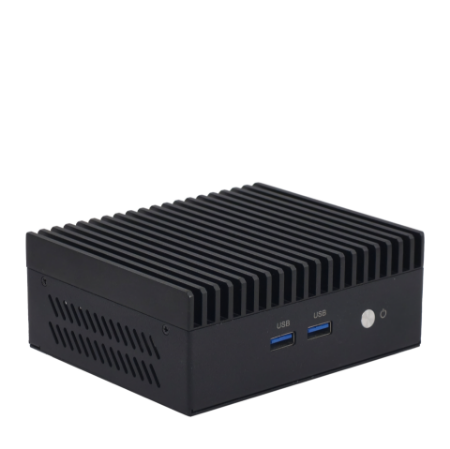

Front panel I/O
• 2 x USB 3.2 ports (Front)
Function
• Optional TPM 2.0
System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
Chassis
• Nuc Fanless Enclosure
• Dimensions: 114mm(L) x 106mm(W) x 42.5mm(H), Weight: 742g
• Color: Black or Silver as default color, custom colors available with special order
• Dimensions: 114mm(L) x 106mm(W) x 42.5mm(H), Weight: 742g
• Color: Black or Silver as default color, custom colors available with special order
Power supply
• Power: DC 12V, 3A Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS support
• Windows 11/ 10 Ubuntu etc
Application
• Digital Signage, Edge AI, AI-IoT, Audio/Video PC, Network Security, Medical/Healthcare, High-Speed Railway
Environment
• Operating Temperature: -20 to +60 C
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
