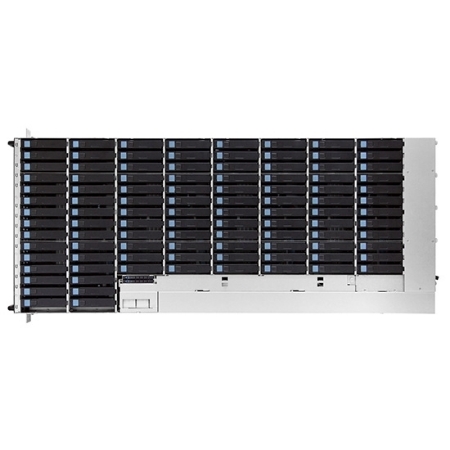

Front view of a large data storage server chassis with many hot-swappable drive bays arranged in vertical stacks.

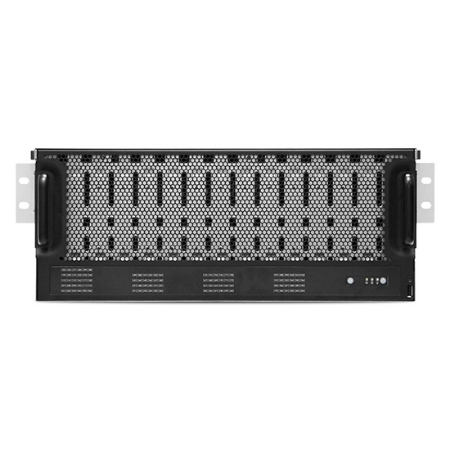

Front view of a rack-mount server chassis with a perforated front panel and side handles for mounting in a equipment rack.

Rear view of a rack-mounted server with multiple hot-swappable drive bays and six cooling fans on the right; power supplies on the left.

Polywell PolyStor 4U102S-X5

Name: PolyStor 4U102S-X5
Availability: InStock

4U 102 x SAS/SSD up to 3060TB (3PB) Top Load Storage Server

Featured Highlights

• Dual Intel® Xeon® Scalable Processors
• Up to 1TB 12 Channel DDR4 ECC memory
• Up to 8 10Gbit Copper/SFP+ or Fiber Channel Network I/O
• Support 102 x 3.5" or 2.5" Top Loading SAS3 12Gb/s Hot-swappable HD/SSD
• Broadcom (LSI) Hardware SAS-12G RAID Accelerator Controller with Expander Backplane
• Hot-swappable Expanders with redundant for Remote System Power on/off and monitoring
• Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
• High Performance up to 20+ GB/s data transfer rate
• Tool-less HDD tray with HDD LED indicator
• SCSI Enclosure Services (SES 3.0) compliant
• Flexible to configure up to 4 Hosts HDD Zoning and individual HDD power cycling
• Intelligent Enclosure and Cable Management
• 2000W 1+1 Redundant Platinum 80+ Power Supply
• OS: Windows Server, Solaris, Linux, FreeBSD, NAS: OpenFiler, FreeNAS
• Application: Big Data Centers, Enterprise Archiving, Cloud Storage, Disaster Recovery.

Technical specifications
Request more information
Request for price quote

CPU options

• Dual Intel® Xeon® Scalable Processors Gold, Silver and Brown Series
• 2 x LGA-3647 Sockets

Chipset

• Intel® 620 Chipset

Memory

• 16 x DIMM Sockets
• Dual 6-Channel ECC DDR4 system memory
• Up to 1TB Memory

Graphics

• AST2500 VGA

GPU support

Network

• 2 x Intel 10Gbit SFP+ and 2 x Intel i350 Gigabit RJ45 LAN ports
• Optional: Additional Gigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN (can be mixed)
• EDR, FDR or 40Gbit QDR Infiniband or Ethernet Over IB

Management

• Web GUI
• E-mail notification
• Local Host Access via VGA and Keyboard

Expansion

• 1 x PCIe 3.0 16x slot for OCP Mezzanine V2.0 (Type 2: 1x QSFP or 2 x QSFP+)

Storage

• 102 x 3.5" Hot-swap SAS/SATA and 2 x 2.5" OS How-swap drive bays
• Supports SAS-12G, SAS-6G, SATA-6G Hard Drive or SSD
• Hardware Accelerated RAID Controller with Expander
• Supports RAID 0, 1, 5, 6, 10, 50, 60 with hot spare drives
• Supports 3.5" or 2.5" hard drive or SSD (Can be mixed)
• Supports PCIe SSD Module

Audio

Back panel I/O

• 2 x USB 3.0 Type-A rear connectors, 1 x USB 2.0 and 1 x USB 3.0 Headers
• 1 x AST2500 VGA port, 1 x Serial COM port, 1 x Serial Header
• 4 x SATA-6G/s (SFF-8643), 2 SATA-6G/s SATA ports
• SAS/ SATA Lewisburg PCH on-chip solution
Backplane:
• 3 x 24-port SAS-12G with 36-Phy expander and 2 x 8i SAS Slimline connectors
• 1 x 30-port SAS-12G with 40-Phy expander and 2 x 8i SAS Slimline connectors

Internal I/O

Other I/O

Function

• Requires NIC with PXE support on client
• IPMI 2.0 with dedicated RJ45 Port
• Power on/off, system reset + USB
• Allows users to access shared files for "Read Only" or "Read/Write"
• Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)

System BIOS

Chassis

• 4U Rackmount Chassis
• 41" tool-less slide rail included
• Option: Cable Management Kit
• Dimensions: 19" W x 7" H x 41.3" D (434 x 175 x 1050mm)
• Weight: 220 lb. (100kg)
• Packaging: 468mm(18.4"H) x 616mm(24.3"W) x 1328mm(52.3"D),105kg (230 lb.) net

Power supply

• 2000W 1+1 redundant 80Plus Platinum power supply (AC input: 200-240V)

OS support

• Linux OS and NAS/iSCSI WEB based Manager • Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux. Client Support • MS Windows® 10, 8, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac • Snap Shot Backup and Recovery Client Support • Active Directory, Rsync are supported

Application

• Storage server

Environment

• System Operating Temperature: 0°C ~ 35°C
• Non-operating Temperature: -20°C ~ 70°C
• Non-operating Relative Humidity: 5% to 85% (non-condensing)
