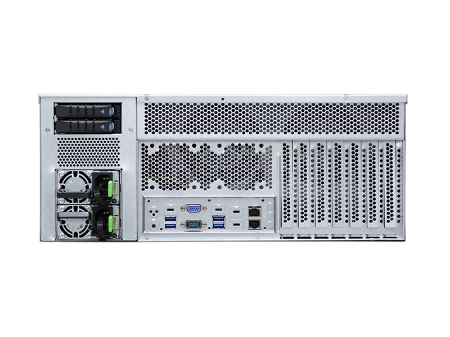

Rear view of a rack-mounted server chassis with cooling fans, power supplies, and I/O ports on the back panel.

Polywell PolyStor 4U24S-X5

Name: PolyStor 4U24S-X5
Availability: InStock

24 x SATA/SAS up to 720TB, Hardware RAID-6 4 x GigaLAN, Quiet and High Performance 12Gbps

Featured Highlights

• Data file sharing among Windows, Linux OS, and Macintosh users, with user name, password protection, and managed access in local workgroups.
• The backup and recovery application provides system backup, remote boot and recovery for Windows clients.
• Can act as a Dynamic Host Configuration Protocol (DHCP) server.
• Can act as a DHCP client for easy network configuration.
• Can be used as linear storage or set up as RAID 0.
• User-friendly Web interface for setting up users and access rights.
• Built-in FTP server provides convenient high-speed file transfers.
• Supports Redundant Power Supply.

Technical specifications
Request more information
Request for price quote

CPU options

• Single or Dual 5th Gen Intel® Xeon® Processors

Chipset

Memory

• 32 DIMM for 16-Channel DDR5 ECC system memory
• Optional: up to 8 TB system memory

Graphics

• AST2600

GPU support

Network

• 2, 4 or 8 x 1GbE, 10GbE, 100GbE, 400GbE Ethernet for NAS/iSCSI, 4G/8G/16G Fibre Channel for SAN (can be mixed).

Management

• AST2600 BMC supports IPMI 2.0 with a dedicated GbE Port
• Web GUI
• E-mail notification
• Local Host Access via VGA and Keyboard

Expansion

Storage

• 1 or 2 Hardware-accelerated RAID controllers (1 or 2 RAID processors) PCIe 4.0 8x bus
• Over 24,000MB/sec write and 70,000MB/sec read
• 24 x 3.5" hot-swap drive bays for SAS-12G/SATA
• Optional: 1 Internal 3.5" and 2 x 2.5" drives
• RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60 with hot spare support (mixed configurations available)

Audio

Back panel I/O

• 2x USB 3.0 rear connectors
• 2 x USB 2.0 Front Connectors
• VGA graphics
• 2 x 10GbE LAN Ports (Optional : 4 or 8 LAN by 10GbE/100GbE/200GbE/400GbE NIC cards)
• 1 x Serial COM rear
• 4 SATA-3 ports
• TPM Infineon 2.0

Internal I/O

Other I/O

Function

Remote Controls
• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported
Remote Boot Function
• Requires NIC with PXE support on client

System BIOS

Chassis

• 4U 24 Bay SAS/SATA Rackmount
• 7 Full Size Slots
• 2 Rear 2.5" Hot Swap SATA-6G/s Drive Bays
• 12G/s Expander Back Plan for 24 How Swap SAS/SATA HD/SSD
• Dimension: 17" x 22" x 7" (435mm x 560 x 177), 99 lb (45kg)
Cooling
• Rear: 9 x 40 x 56mm hot-swap fans for HDD Bays + 4 x 60 x 38mm fans for MB

Power supply

• 800W 1+1 redundant 80 Plus Platinum Level power supply UR/FCC/CE Certified

OS support

• Linux OS and NAS/iSCSI WEB based Manager • Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux. Client Support • MS Windows® XP, 7, 10, 11, Windows® Server, Linux, FreeBSD, Mac OS, Android. • Snap Shot Backup and Recovery Client Support • Active Directory and Rsync are supported

Application

• Storage server

Environment

• System Operating Temperature: 0°C ~ 35°C
• Non-operating Temperature: -20°C ~ 70°C
• Non-operating Relative Humidity: 5% to 85% (non-condensing)
