Polywell PolyStor 4U60S-E5

Name: PolyStor 4U60S-E5
Availability: InStock

4U 60 Hot-Swap HD, up to 600TB Quad LAN, RAID 5, 6, 10, 50, 60

Featured Highlights

• Dimensions: 17.1(w)x33.5(D)x6.9(H) inch
• AMD EPYC™ 9005*/9004 and 97x4 Series Processors
• 60 Hot-swap 3.5" SATA/SAS Top Loaded drive bays,8 Optional Hot-swap 2.5" U.2 NVMe Rear drive bays
• Intel® X550-AT2 2 RJ45 10Gbe LAN, 1 dedicated IPMI
• 8 DIMM slots(1DPC), Supports DDR5 288-pin RDIMM, RDIMM-3DS
• Hardware RAID Acceleration Controller
• Power Supply: 2+2 CRPS power supply (4 x 800W 80-Plus Platinum modules) 100-240V 60/50Hz UR/FCC/CE Certified
• OS Support: Windows Server 2019(64bit), 2022(64bit), RedHat Linux, ,UBuntu,SUSE, VMWare,,CITRIX
• Application: Data Centers, Enterprise Archiving, or Cloud Storage.

Technical specifications
Request more information
Request for price quote

CPU options

• Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors

Chipset

• None (AMD Turin PCH less architecture; all I/O provided by CPUs)

Memory

8 DIMM slots (1DPC)
• Supports DDR5 288-pin RDIMM, RDIMM-3DS
• RDIMM: 96GB (2R),RDIMM-3DS: 512GB (2S8Rx4)

Graphics

• ASPEED AST2600
• DDR4 512MB

GPU support

Network

• Intel® X550-AT2: 2 RJ45 (10GbE). Optional 2 or 4 additional 10/25/100/100GbE by Card
• 1 dedicated IPMI

Management

Expansion

Storage

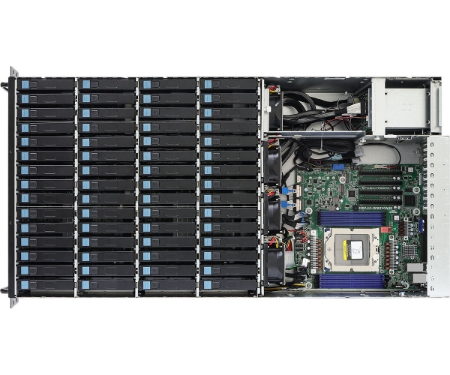

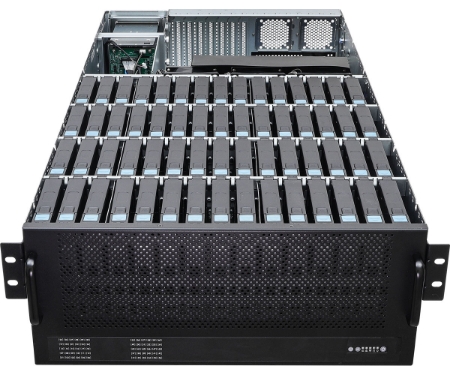

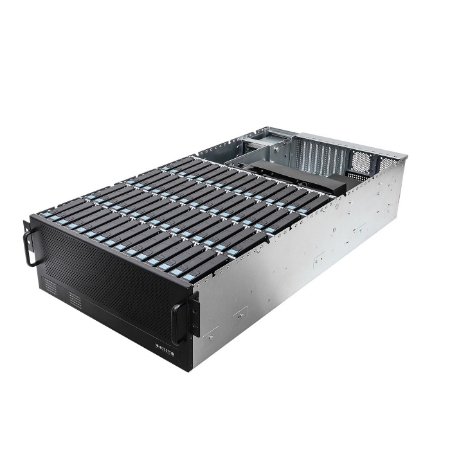

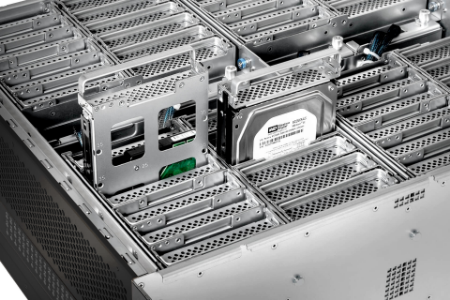

• 60 Hot-swap 3.5" SATA/SAS Top Loaded drive bays, 8 Optional Hot-swap 2.5" U.2 NVMe Rear drive bays
• 2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor
• 8 Hot-swap 2.5'' NVMe (PCIe5.0 x4) drive bays* *Supports TA@30C *Additional RAID/HBA card required to support the 60 x 3.5" SATA/SAS drives
• 8-ports NVMe passive backplane
• 2 x 30-port 12G SAS backplanes with 40-PHY expander

Audio

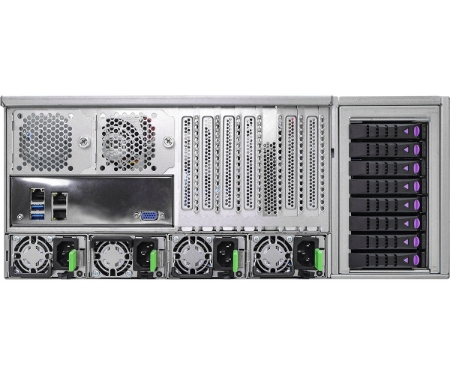

Back panel I/O

• 2x Type-A(USB 3.2 Gen1) rear connectors
• VGA graphics
• 2 x SATA-6G/s, 4 SATA-3G/s SATA port, optional SAS ports supported
• Optional: 2 additional I/O (such as COM, PS/2, TPM) supported by header or add-on

Internal I/O

Other I/O

Function

Cooling
• Rear: 9 x 40 x 56mm hot-swap fans for HDD Bays + 4 x 60 x 38mm fans for MB
Remote Boot Function
• Requires NIC with PXE support on client

• DHCP client/server (default is DHCP client/static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI / NAS / SAN (Can be mixed)

System BIOS

Chassis

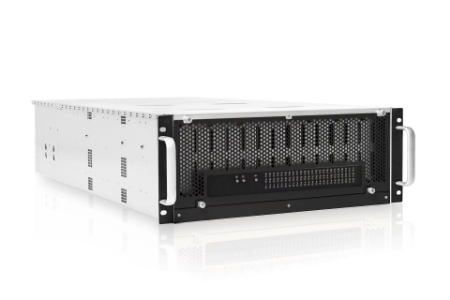

• 4U Rackmount Chassis
• Dimensions: 17.1" W x 7" H x 33.5" D
• Weight: 200 lb.

Power supply

• 2+2 CRPS power supply (4 x 800W 80-Plus Platinum modules) 100-240V 60/50Hz UR/FCC/CE Certified

OS support

• Microsoft® Windows:- Server 2019 (64bit)- Server 2022 (64 bit), Linux OS and NAS/iSCSI WEB based Manager • Optional: Solaris, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux. Client Support • MS Windows®11,10,8, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac • Snap Shot Backup and Recovery Client Support • Active Directory, Rsync are supported • Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)

Application

• Storage server

Environment

• System Operating Temperature: 0°C ~ 35°C
• Non-operating Temperature: -20°C ~ 70°C
• Non-operating Relative Humidity: 5% to 85% (non-condensing)
