Polywell Slim-J6426AL2

Name: Slim-J6426AL2
Availability: InStock

Elkhart Lake embedded platform with VGA, HDMI, eDP and LVDS display support, dual LAN, 6 COM headers, up to 3 storage devices, M.2 expansion for 5G and Wi-Fi, and Embedded Longevity support.

Featured Highlights

• Intel® Pentium® J6426 or Celeron® J6412 processor
• Intel® Elkhart Lake SoC
• Intel® UHD Graphics with VGA + HDMI + eDP + LVDS
• 1 x DDR4 SO-DIMM, up to 32GB
• 2 x Gigabit LAN
• 6 COM headers: 4 x RS232 + 2 x RS232/RS485
• Up to 3 storage devices: SATA + mSATA + M.2
• 1 x M.2 Key B with SIM for 5G / cellular module
• 1 x M.2 Key E for Wi-Fi + Bluetooth module
• Fanless design
• DC 12V input
• Windows 10 / 11, IoT, Linux
• Embedded Longevity
• Applications: POS, Kiosk, Digital Signage, IoT, Network Security, Edge PC, Audio Encoder/Decoder

Technical specifications
Request more information
Request for price quote
Request for Test Drive

CPU options

• Intel® Celeron® J6412, 4 cores / 4 threads, 10W
• Intel® Pentium® J6426, 4 cores / 4 threads, 10W

Chipset

• Intel® Elkhart Lake Platform (SOC)

Memory

• 1 x DDR4 SO-DIMM slot
• DDR4 3200MHz
• Supports up to 32GB

Graphics

• Intel® UHD Graphics
• 1 x VGA
• 1 x HDMI
• 1 x eDP header
• 1 x LVDS header
• eDP / LVDS configurable by jumper

Network

• 2 x Realtek® Gigabit LAN
• 1 x M.2 Key B 2242/2252 slot for 5G / cellular module
• 1 x SIM slot
• 1 x M.2 Key E 2230 slot for Wi-Fi / Bluetooth module
• Wake on LAN and PXE supported

Expansion slots

• 1 x M.2 Key M 2260/2280 slot
• 1 x M.2 Key B 2242/2252 slot for 5G / cellular module
• 1 x M.2 Key E 2230 slot for Wi-Fi / Bluetooth module
• Optional M.2-2280-to-PCIe converter available for selected expansion requirements

Storage

• 1 x SATA 6Gb/s port
• 1 x mSATA slot
• 1 x M.2 Key M 2260/2280 storage slot
• Supports up to 3 storage devices

Audio

• Realtek® ALC897 8-channel (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

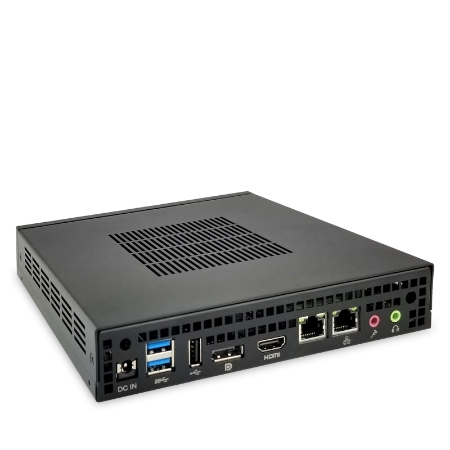

Back panel I/O

• 1 x DC 12V power input
• 1 x VGA
• 1 x HDMI
• 2 x USB 3.0
• 2 x RJ45 Gigabit Ethernet
• 1 x Line-out
• 1 x Mic-in
• 1 x Clear CMOS button

Internal I/O

• 1 x LVDS header
• 1 x eDP header
• 1 x LCD backlight power header
• 4 x USB 2.0 via headers
• 6 COM headers: 4 x RS232 + 2 x RS232/RS485
• COM1/2 support pin-9 power; COM2/3 support RS485/422
• 1 x SIM slot

Other I/O

• 1 x SATA power header
• 1 x Front audio header
• 1 x Amplifier header
• 1 x LPT header
• 1 x SIM slot
• 1 x Front panel button / LED header

Front panel I/O

Function

• 1 x 4in/4out GPIO header

System BIOS

• AMI® UEFI BIOS
• Watchdog supported

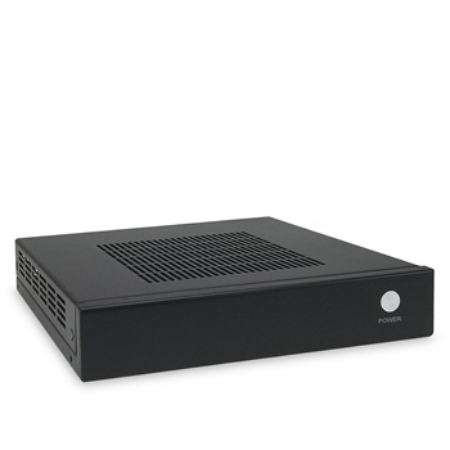

Chassis

• 138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb(Net) 10 lb(gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• Option: Slim 10a Series 1.4" Slim

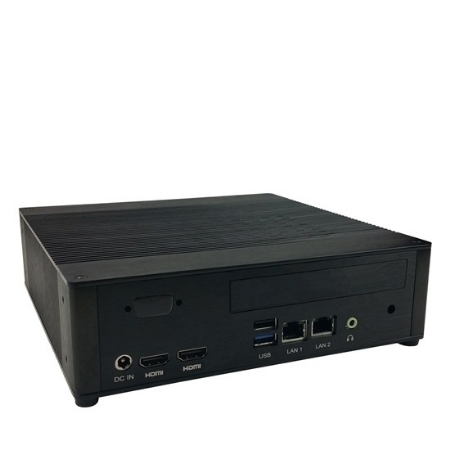

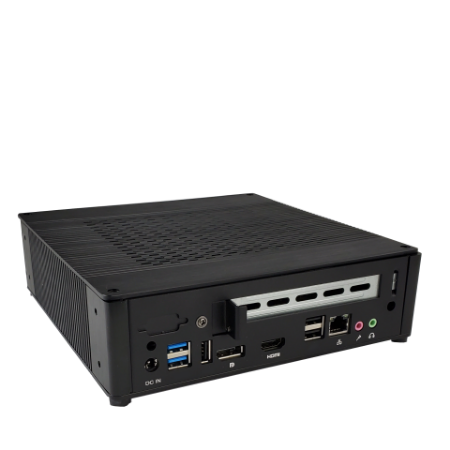

• Option: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot

Power supply

• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS support

• Windows 10/11, IoT, Linux

Application

• POS
• Kiosk and self-service terminals
• Digital signage
• IoT and edge gateways
• Digital home
• Network security
• Edge PC
• Audio encoder / decoder
• Embedded Longevity applications

Environment

• Operating Temperature: -20 to +60°C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Working Humidity: 5% to 95% relative humidity, non-condensing
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
