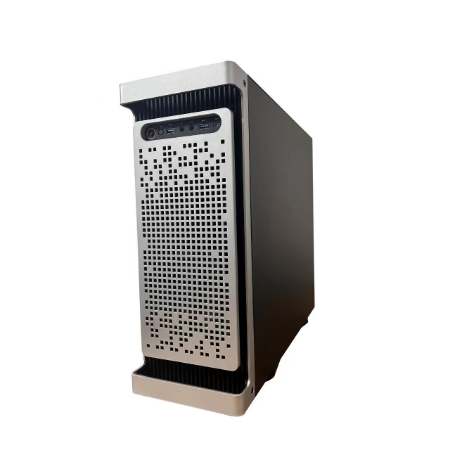

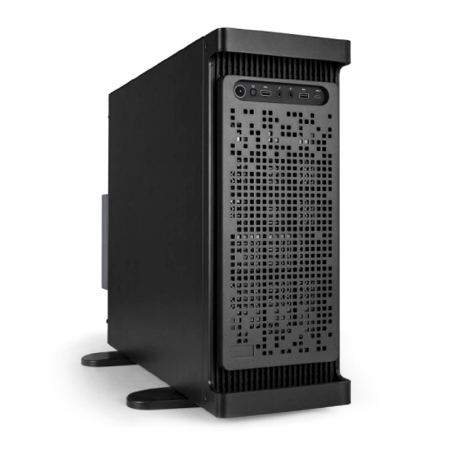

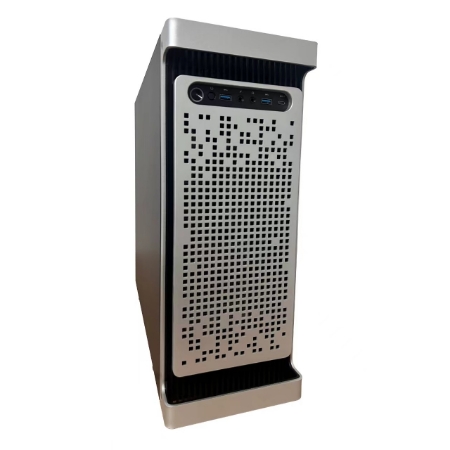

Polywell ServerStation W790E7
7 Dual-Slot or 3 Triple-Slot GPU Cards ,4th Gen. Xeon-W, 8-ch. DDR 5.0, 7 x PCIe 5.0 16x Slots
Featured Highlights
• Supports Intel® Xeon® W2500/W2400 and W3500/W3400 processors
• Intel® W790 Chipset, Sapphire Rapids Family
• 8 x 8-Channel DDR 5.0 Memory for up to 2TB ECC memory
• Up to 7 Graphics Cards by 7 PCIe 5.0 x16 Slots
• 3 M.2-2280 NVMe PCIe 4.0 x4 slots for OS RAID,3 x SAS 12Gb/s ports ,4 x SATA 6Gb/s ports
• 2 x 2.5G Intel® Ethernet, IPMI 2.0 BMC + vPro®
• 4U/Tower Chassis with 2 x 3.5” + 1 x 2.5” SATA drive bays
• 2 x 1200W/1600W/2000W Redundant Platinum/Titanium PSU
• OS Support: Windows, Linux, FreeBSD
• Applications: Edge AI Computing, AI Inference, Nvidia Cuda, Open AI ChatGPT, Microsoft CoPilot, Google Gemini, Meta Llama, etc.
CPU options
• 4th Generation Intel® Xeon® LGA-4677 Socket-E
• Intel® Xeon® w9/w7/w5-3500,3400 112L w7/w5-2500,2400 64L
• Up to 56 Cores / 112 Threads 105MB Smart Cache
• Intel® Xeon® w9/w7/w5-3500,3400 112L w7/w5-2500,2400 64L
• Up to 56 Cores / 112 Threads 105MB Smart Cache
Chipset
• Intel® W790 Chipset for Sapphire Rapids
Memory
• 8 x DDR5 RDIMM Slots
• 4800MHz ECC (W3400 112L 8 Channel, W2400 64L 4 Channel)
• W3400 112L up to 2TB, W2400 64L up to 1TB
• 4800MHz ECC (W3400 112L 8 Channel, W2400 64L 4 Channel)
• W3400 112L up to 2TB, W2400 64L up to 1TB
Graphics
• VGA (DB15) port by AST2600
• Up to 7 Dual-Slot ( NVIDIA RTX PRO™ 6000/5000/4500/4000, A100, H100, H100NVL, H200NVL, A800, H800) or 3 Triple-Slot (GeForce RTX™ 5090, GeForce RTX™ 5080) GPU cards via 7 PCIe 5.0 16x slots
• Up to 7 Dual-Slot ( NVIDIA RTX PRO™ 6000/5000/4500/4000, A100, H100, H100NVL, H200NVL, A800, H800) or 3 Triple-Slot (GeForce RTX™ 5090, GeForce RTX™ 5080) GPU cards via 7 PCIe 5.0 16x slots
Network
• 2 x Intel® I226 2.5Gigabit Ethernet
• IPMI 2.0 BMC + vPro (for Remote Management)
• Option: additional LAN can be added by PCIe adapters
• IPMI 2.0 BMC + vPro (for Remote Management)
• Option: additional LAN can be added by PCIe adapters
Expansion
• 7 x PCI Express 5.0 x16 slot (x16 Signal)
• 3 x M.2-2280 Sockets (PCIe 4.0 x4 NVMe)
• 3 x M.2-2280 Sockets (PCIe 4.0 x4 NVMe)
Storage
• 3 x SAS 12Gb/s ports
• 4 x SATA 6Gb/s Supports RAID-0, 1, 5, 10
• 3 x M.2-2280 Sockets (PCIe 4.0 x4 NVMe) SSD
• 4 x SATA 6Gb/s Supports RAID-0, 1, 5, 10
• 3 x M.2-2280 Sockets (PCIe 4.0 x4 NVMe) SSD
Audio
• Realtek® ALC897 Audio Codec (7.1)
• 6 x 3.5mm Analog Stereo Audio jacks
• 6 x 3.5mm Analog Stereo Audio jacks

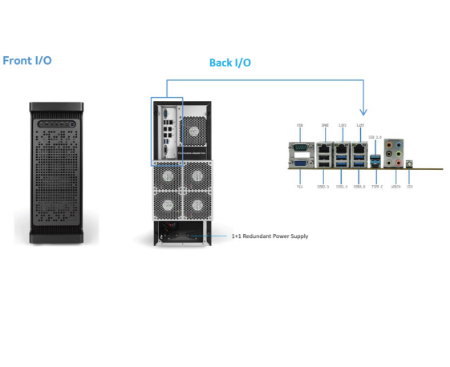

Back panel I/O
• 10 x USB 3.2 Gen2 Ports
• 1 x USB 3.2 Type-C
• 1 x VGA port
• 2 x RJ-45 LAN ports, 1 x RJ45 IPMI port
• 3 x 3.5mm Audio jacks
• 1 x USB 3.2 Type-C
• 1 x VGA port
• 2 x RJ-45 LAN ports, 1 x RJ45 IPMI port
• 3 x 3.5mm Audio jacks
Internal I/O
• 1 x USB 2.0 Header (for 2 ports)
• 1 x SMBus, 1 x TPM Connector
• 1 x Intrusion Header, 1 x Front Audio Header
• 1 x 24pin ATX-in, 2 x 8pin Power Connectors
• 1 x SMBus, 1 x TPM Connector
• 1 x Intrusion Header, 1 x Front Audio Header
• 1 x 24pin ATX-in, 2 x 8pin Power Connectors
Other I/O
Function
System BIOS
• AMI UEFI
Chassis
• Tower / 4U Rackmount Metal Enclosure

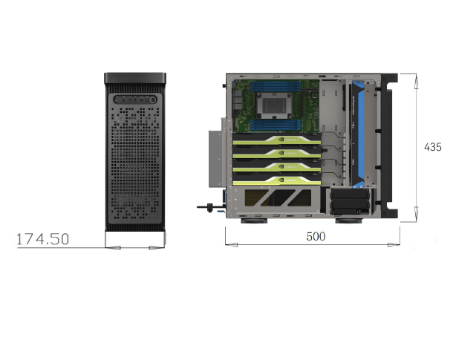

• Dimensions: (Tower) 17.12"(H)x6.87"(W)x 19.68"(D)
• (4U) 17.12”(W) x 6.87”(H) x 19.68”(D)
• Weight: 41 lb. (Net), 58 lb. (with packaging)
• Drive Bay: 2 x 3.5”, 1 x 2.5
• Front: 1 x UID, 1 x Reset, 1 x Power Switch/LED
• Dimensions: (Tower) 17.12"(H)x6.87"(W)x 19.68"(D)
• (4U) 17.12”(W) x 6.87”(H) x 19.68”(D)
• Weight: 41 lb. (Net), 58 lb. (with packaging)
• Drive Bay: 2 x 3.5”, 1 x 2.5
• Front: 1 x UID, 1 x Reset, 1 x Power Switch/LED
Power supply
• Dual CRPS Redundant 1200W/1600W/2000W Platinum/Titanium
• 90V-240VAC Input
• 90V-240VAC Input
OS support
• Windows 10/11 Pro, Windows Server, Linux, FreeBSD
Application
• Edge AI Computing, AI Inference, Nvidia Cuda, Open AI ChatGPT, Microsoft CoPilot, Google Gemini, Meta Llama, etc.
Environment
• Operating Temperature: +5 to +35 C
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
